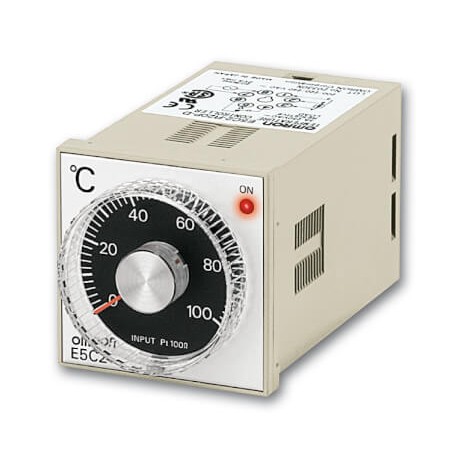

E5C2-R40K 100-240VAC 0-300 E5C26014M E5C2R40KAC1002400300 OMRON Proportional Thermocouple K 0-300 ° C 48x48

E5C2-R40K 100-240VAC 0-300

E5C26014M

E5C2R40KAC1002400300

OMRON

1 Pcs.

Proportional Thermocouple K 0-300 ° C 48x48 Temp. controller, LITE, 1/16 DIN, 48x48mm,Dial knob,P-Control,K-Thermocouple,0-300deg.,100-240V AC

Automation > Temperature monitoring relay
E5C2

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Features

Easy-to-use, basic temperature controller with analogue dial setting

Omron's basic ON/OFF or PD controller features an analogue setting dial. This compact, low-cost controller has a setting accuracy of 2% of full scale. It incorporates a plug-in socket allowing for DIN-rail or flush mounting.

  • Compact, cost-effective controller
  • Control mode: ON/OFF or P
  • Control output: relay
  • Power supply: 100-120 / 200-240VAC
  • Thermocouple K: 0 to 1200°C, L: 0 to 400°C, Pt100: -50 to 200°C

Applications

ON/OFF control

Hot water supply provided by a boiler can be simply controlled with an E5C2. The water temperature is set by the big and easy to operate dial on the front of the controller.

Ordering information

Standard models (Power supply: 100 to 240 VAC)

Input

Control method

On/OFF

Proportional (P)

Output/Indication method

Relay/No indication

Input/ standard scale (°C)

Thermocouple

K (CA) Chromel vs. Alumel

0 to 200 °C

E5C2-R20K AC100-240 0-200

E5C2-R40K AC100-240 0-200

0 to 300 °C

-

E5C2-R40K AC100-240 0-300

0 to 400 °C

E5C2-R20K AC100-240 0-400

E5C2-R40K AC100-240 0-400

0 to 600 °C

E5C2-R20K AC100-240 0-600

E5C2-R40K AC100-240 0-600

0 to 800 °C

E5C2-R20K AC100-240 0-800

E5C2-R40K AC100-240 0-800

0 to 1000 °C

E5C2-R20K AC100-240 0-1000

-

0 to 1200 °C

E5C2-R20K AC100-240 0-1200

-

J (IC) Iron versus Constantan

0 to 200 °C

E5C2-R20J AC100-240 0-200

-

0 to 300 °C

E5C2-R20J AC100-240 0-300

-

0 to 400 °C

E5C2-R20J AC100-240 0-400

-

Resistance thermometer

Platinum resistance thermometer

-50 to 50 °C

E5C2-R20P-D AC100-240 -50-50

-

0 to 50 °C

E5C2-R20P-D AC100-240 0-50

-

0 to 100 °C

E5C2-R20P-D AC100-240 0-100

-

0 to 200 °C

E5C2-R20P-D AC100-240 0-200

-

0 to 300 °C

E5C2-R20P-D AC100-240 0-300

-

0 to 400 °C

E5C2-R20P-D AC100-240 0-400

-

Thermistor

THE (replaceable element)

0 to 100 °C

E5C2-R20G AC100-240 0-100

-

100 to 200 °C

E5C2-R20G AC100-240 100-200

-

150 to 300 °C

E5C2-R20G AC100-240 150-300

-

Input ranges

Thermocouple1

Platinum resistance thermometer

Thermistor2

K (CA) chromel vs. alumel

J (IC) iron vs. constantan

Pt100

THE

°C

0 to 200 (5),
0 to 400 (10),
0 to 600 (20),
0 to 800 (20),
0 to 1,000 (25),
0 to 1,200 (25)

0 to 200 (5),
0 to 300 (10),
0 to 400 (10)

-50 to 50 (2),
0 to 50 (1),
0 to 100 (2),
0 to 200 (5),
0 to 300 (10),
0 to 400 (10)

0 to 100 (2) (6 kΩ at 0°C),
100 to 200 (2) (550 Ω ☐ 200°C)

150 to 300 (2) (4 kΩ ☐ 200°C)

Accessories

Functions

Order code

Front connecting socket with finger protection

P2CF-08-E

Back connecting socket (for flush mounting)

P3G-08

Finger protection cover (for P3G-08)

Y92A-48G

Protective front cover (IP66)

Y92A-48B

Specifications

Supply voltage

100 to 240 VAC, 50/60 Hz

Thermocouple input type

K, J (with sensor break detection)

RTD input type

Pt100, THE

Control mode

ON/OFF or P control

Setting method

analog setting

Output

Relay, SPDT, 3 A at 250 VAC

Life expectancy

Electrical: 100,000 operations min.

Setting accuracy

±2% FS max.

Hysteresis

Approx. 0.5% FS (fixed)

Proportional band

3% FS (fixed)

Reset range

5 ±1% FS min.

Control period

20 s

IP Rating front panel

IP40 (IP66 cover available)

IP rating terminals

IP00

Ambient temperature

-10 to 55°C

Size in mm (HxWxD)

48×48×96

1.Values in ( ) are the minimum unit.

2.Values in ( ) are the thermistor resistive value.


Product Datasheet
