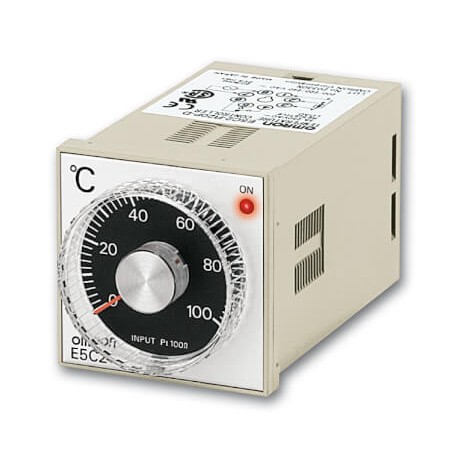

E5C2-R20P-D 100-240VAC 0-400 E5C26029R E5C2R20PDAC1002400400 OMRON ON/OFF Pt 0-400 ° C 48x48
E5C2-R20P-D 100-240VAC 0-400
E5C26029R
E5C2R20PDAC1002400400
OMRON
1 Pcs.
Automation > Temperature monitoring relay
E5C2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An analog temperature controller, represented here by the Omron E5C2-R20P-D 100-240VAC 0-400, governs thermal environments in commercial and industrial settings by comparing process variables against user-defined setpoints. Such devices ensure consistent temperature regulation in ovens, packaging equipment, and molding machines.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Input/ standard scale (°C): Thermocouple
- 0 to 400 °C: E5C2-R20K AC100-240 0-400
- 0 to 600 °C: E5C2-R20K AC100-240 0-600
- 0 to 800 °C: E5C2-R20K AC100-240 0-800
- 0 to 1000 °C: E5C2-R20K AC100-240 0-1000
- 0 to 1200 °C: E5C2-R20K AC100-240 0-1200
- J (IC) Iron versus Constantan: 0 to 200 °C
- 0 to 300 °C: E5C2-R20J AC100-240 0-300
- 0 to 400 °C: E5C2-R20J AC100-240 0-400
- Resistance thermometer: Platinum resistance thermometer
- 0 to 50 °C: E5C2-R20P-D AC100-240 0-50
- 0 to 100 °C: E5C2-R20P-D AC100-240 0-100
- 0 to 200 °C: E5C2-R20P-D AC100-240 0-200
- 0 to 300 °C: E5C2-R20P-D AC100-240 0-300
- 0 to 400 °C: E5C2-R20P-D AC100-240 0-400
- Thermistor: THE (replaceable element)
More info
▲Easy-to-use, basic temperature controller with analogue dial setting
Omron's basic ON/OFF or PD controller features an analogue setting dial. This compact, low-cost controller has a setting accuracy of 2% of full scale. It incorporates a plug-in socket allowing for DIN-rail or flush mounting.
- Compact, cost-effective controller
- Control mode: ON/OFF or P
- Control output: relay
- Power supply: 100-120 / 200-240VAC
- Thermocouple K: 0 to 1200°C, L: 0 to 400°C, Pt100: -50 to 200°C
Applications
ON/OFF control
Hot water supply provided by a boiler can be simply controlled with an E5C2. The water temperature is set by the big and easy to operate dial on the front of the controller.
Ordering information
Standard models (Power supply: 100 to 240 VAC)
Thermocouple1 | Thermistor2 | |||
|---|---|---|---|---|
0 to 200 (5), | -50 to 50 (2), | |||
