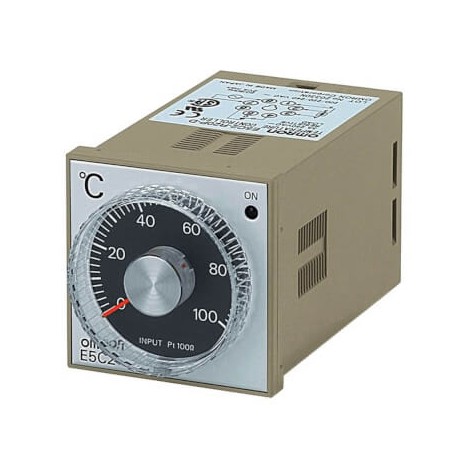

OMRON E5C2-R20P-D 100-240VAC 0-100 E5C2-R20P-D 100-240VAC 0-100 E5C26019A E5C2R20PDAC1002400100 OMRON ON/OFF Pt 0-100 ° C 48x48 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E5C2-R20P-D 100-240VAC 0-100 E5C26019A E5C2R20PDAC1002400100 OMRON ON/OFF Pt 0-100 ° C 48x48

E5C2-R20P-D 100-240VAC 0-100

E5C26019A

E5C2R20PDAC1002400100

OMRON

1 Pcs.

ON/OFF Pt 0-100 ° C 48x48 Temp. controller, LITE, 1/16 DIN, 48x48mm,Dial knob,On-Off Control,Pt100,0-100deg.,100-240V AC

Automation > Temperature monitoring relay
E5C2

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A panel-mounted temperature controller, specifically the Omron E5C2-R20P-D 100-240VAC 0-100, is deployed in industrial environments to monitor and maintain steady thermal conditions for various processes. This component receives input from thermal sensors and adjusts output signals to heating or cooling elements to sustain precise setpoints.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (operating voltage): AC
  • Type of electric connection: Plug-in connection
  • Voltage type (supply voltage): AC
  • Error registration possible: No
  • External reset possible: No
  • With detachable clamps: No
  • Number of contacts as change-over contact: 1
  • Number of contacts as normally open contact: 0
  • Width: 48 mm
  • Number of contacts as normally closed contact: 0
  • Number of measuring circuits: 1
  • Height: 48 mm
  • Depth: 101.7 mm
  • Supply voltage AC 50 Hz: 100 V
  • Supply voltage AC 60 Hz: 100 V

More info

▲
Size1/16 DIN (48 x 48 mm)FunctionsON/OFF controlNumber of control loops1Temperature input typeJPt100, Pt100Temperature range0-100 °CNumber of alarm outputs0Supply voltage AC100-240 VControl outputRelayTerminal typePlug-in

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
