> OMRON > Temperature and Processes > E5C2 > E5C26021C

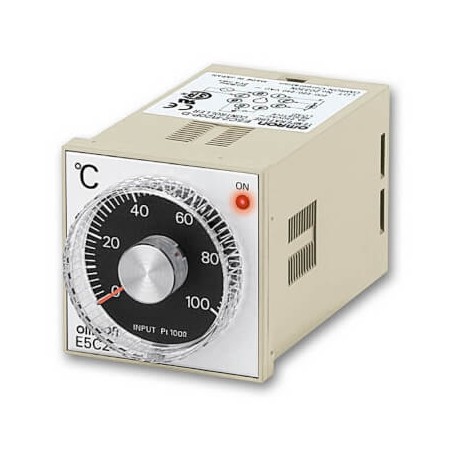

OMRON E5C2-R20J 100-240VAC 0-200 E5C2-R20J 100-240VAC 0-200 E5C26021C E5C2R20JAC1002400200 OMRON ON/OFF Thermocouple J 0-200 ° C 48x48 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E5C2-R20J 100-240VAC 0-200 E5C26021C E5C2R20JAC1002400200 OMRON ON/OFF Thermocouple J 0-200 ° C 48x48

E5C2-R20J 100-240VAC 0-200

E5C26021C

E5C2R20JAC1002400200

OMRON

1 Pcs.

ON/OFF Thermocouple J 0-200 ° C 48x48 Basic temperature controller, 1/16 DIN, 48 x 48 mm,Dial knob,On-Off Control,J-Thermocouple,0-200deg.,100 to 240V AC

Automation > Temperature monitoring relay
E5C2

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Size1/16 DIN (48 x 48 mm)FunctionsON/OFF controlNumber of control loops1Temperature input typeJTemperature range0-200 °CNumber of alarm outputs0Supply voltage AC100-240 VControl outputRelayTerminal typePlug-in
ETIM for 378350 Relays (EC001446)
Feature Name Feature Value
Voltage type (operating voltage) (EF005294) AC
Type of electric connection (EF003961) Plug-in connection
Voltage type (supply voltage) (EF002991) AC
Error registration possible (EF003423) No
External reset possible (EF003426) No
With detachable clamps (EF003340) No
Number of contacts as change-over contact (EF008257) 1
Number of contacts as normally open contact (EF008256) 0
Width (EF000008) 48 mm
Number of contacts as normally closed contact (EF008255) 0
Number of measuring circuits (EF003425) 1
Height (EF000040) 48 mm
Depth (EF000049) 101.7 mm
Supply voltage AC 50 Hz (EF007532) 100 V
Supply voltage AC 60 Hz (EF007533) 100 V

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
