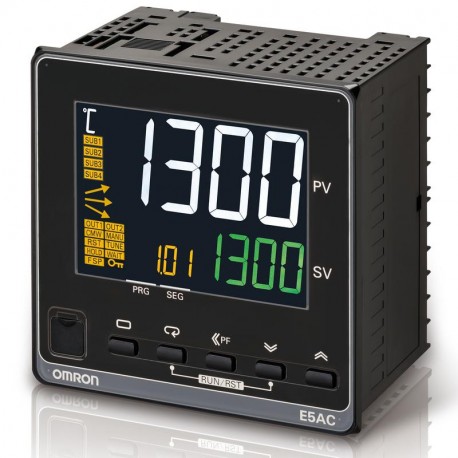

OMRON E5AC-TQX4A5M-008 E5AC-TQX4A5M-008 E5AC5510A E5ACTQX4A5M008 OMRON Ctrl.Temp,Ent.Univ,Salt.SSR,4sal.aux,HBA,RS485,2Ent Evt,100-.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E5AC-TQX4A5M-008 E5AC5510A E5ACTQX4A5M008 OMRON Ctrl.Temp,Ent.Univ,Salt.SSR,4sal.aux,HBA,RS485,2Ent Evt,100-..

E5AC-TQX4A5M-008

E5AC5510A

E5ACTQX4A5M008

OMRON

1 Pcs.

Ctrl.Temp,Ent.Univ,Salt.SSR,4sal.aux,HBA,RS485,2Ent Evt,100-240VAC,Screw,96x96 Temp. controller, PRO, 1/4 DIN (96x96 mm), PRO, gr., 4 AUX, 1 x 12 VDC pulse OUT, 2x EVT. I/P, Ht. Burnout SSR fail., RS-485,100 to 240 VAC

Automation > Temperature monitoring relay
E5_C

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron temperature controller (E5AC-TQX4A5M-008) is an advanced automation instrument designed to govern heating and cooling elements in sophisticated industrial applications. By continuously tracking sensor feedback against set benchmarks, the unit regulates process temperatures with high accuracy.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (operating voltage) (EF005294): AC
  • Type of electric connection (EF003961): Screw connection
  • Voltage type (supply voltage) (EF002991): AC
  • With detachable clamps (EF003340): No
  • Width (EF000008): 96 mm
  • Height (EF000040): 96 mm
  • Depth (EF000049): 60 mm
  • Temperature measuring range (EF009788): -200 °C

More info

▲
  • Set up to 8 programs  with 32 segments totaling 256 program segments simply viaCX-Thermosoftware.
  • The three-level display is visible simultaneously so each process status can be easily identified.
  • "Segment Jump" allows users to move directly to the specified segment reducing programming time and increase production throughput.
