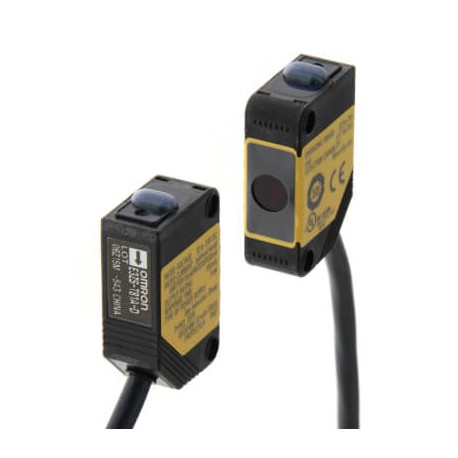

OMRON E3ZS-T81A E3ZS-T81A E3ZS6001D E3ZST81A,1 OMRON Photocell Sec. Class II Petaca Plastic cc 4h Barrier 3m PNP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3ZS-T81A E3ZS6001D E3ZST81A,1 OMRON Photocell Sec. Class II Petaca Plastic cc 4h Barrier 3m PNP

E3ZS-T81A

E3ZS6001D

E3ZST81A.1

OMRON

1 Pcs.

Photocell Sec. Class II Petaca Plastic cc 4h Barrier 3m PNP Photoelectric sensor, rectangular housing, through-beam, red LED, PLc, Safety Category 2, 10 m, DC, 3-wire, PNP, 2 m cable

Automation > Single beam light curtain
Others

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron photocell functions as an optical photoelectric sensor designed for non-contact object detection, positioning, and counting across industrial production lines. These sensing devices project a light beam to reliably detect target items in automated material handling, packaging, and assembly machinery.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP67
  • Material of optical surface (EF004134): Plastic
  • Type of safety according to IEC 61496-1 (EF004105): 2
  • Housing material (EF001596): Plastic
  • Operation agent-safety class (EF003982): Safety class 2
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cuboid
  • Scope of delivery of the one-way system (EF004032): Transmitter and receiver
  • Sensing mode (EF007503): Light switching
  • Type of switch function (EF003963): Programmable/configurable
  • Type of electric connection (EF003961): Cable
  • Type of light (EF004029): Polarized red light
  • Material of cable sheath (EF004136): Polyvinyl chloride (PVC)
  • Type of switching output (EF003962): PNP
  • With communication interface RS-485 (EF007314): No
  • With communication interface SSD (EF007315): No

More info

▲
Sensing methodSafety single-beamType of safety according to IEC 61496-12Number of beams1Maximum safety range3 mMinimum operating distance0.2 mKey featuresExternal testDegree of protection (IP)IP67CascadableSuitable for safety functionsScope of deliveryTransmitter and receiverResponse time1 msWavelength of the sensor660 nmConnection methodCableSupply voltage DC12-24 VType of switching output of the OSSDPNPAmbient temperature-10-55 °CProduct Width (unpacked)10.8 mmProduct Height (unpacked)31 mmProduct Depth (unpacked)20 mm
