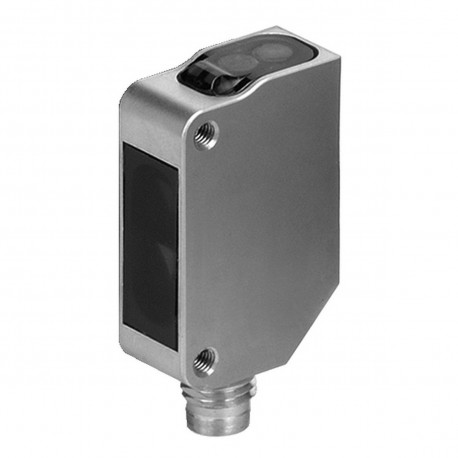

OMRON E3ZM-LS69H E3ZM-LS69H E3ZM0010M E3ZMLS69H OMRON Metal BGS cc 4h 20cm NPN M8 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3ZM-LS69H E3ZM0010M E3ZMLS69H OMRON Metal BGS cc 4h 20cm NPN M8

E3ZM-LS69H

E3ZM0010M

E3ZMLS69H

OMRON

1 Pcs.

Metal BGS cc 4h 20cm NPN M8 Photoelectric sensor, rectangular housing, stainless steel, red LED, background suppression, 200 mm, NPN, Light-ON/Dark-ON, M8 4-pin connector

Automation > Light scanner with background masking
E3Z

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron metal BGS cc 4h 20cm NPN M8 component E3ZM-LS69H operates as a specialized photoelectric device used for reliable material handling, sorting, and positioning tasks in industrial production lines.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP67
  • Material of optical surface (EF004134): Plastic
  • Housing material (EF001596): Metal
  • Operation agent-safety class (EF003982): Safety class 3
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cuboid
  • Sensing mode (EF007503): Light-/dark switching
  • Triangulation (EF008296): Background fade-out
  • Type of switch function (EF003963): Programmable/configurable
  • Type of electric connection (EF003961): Connector M8
  • Type of light (EF004029): Polarized red light
  • Material of cable sheath (EF004136): Polyvinyl chloride (PVC)
  • Type of switching output (EF003962): NPN
  • With communication interface RS-485 (EF007314): No
  • With communication interface SSD (EF007315): No
  • With communication interface SSI (EF007316): No

More info

▲
ShapeCuboidSensing methodBackground suppressionSensing distance200 mmSensing distance (min.)10 mmSetting methodFixedConnection methodConnector M8 - 4 pinOutput typeNPNOperation modeDark-ON, Light-ONResponse time1 msMaterial housingStainless steelThread sizeOtherProduct Width (unpacked)10.8 mmProduct Height (unpacked)32.2 mmProduct Depth (unpacked)21 mmType of lightPolarity free red lightSpot size18 mmPower supply voltage10-30 VDegree of protection (IP)IP67/IP69K

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
