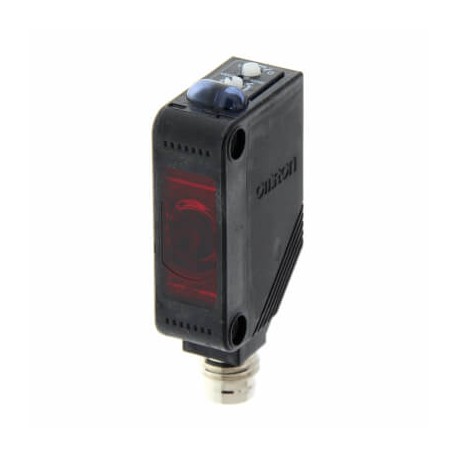

OMRON E3Z-LT86-D E3Z-LT86-D E3Z 7505E E3ZLT86DOMS OMRON Laser-cc 3h Barrier 50m PNP M8 Receiver View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3Z-LT86-D E3Z 7505E E3ZLT86DOMS OMRON Laser-cc 3h Barrier 50m PNP M8 Receiver

E3Z-LT86-D

E3Z 7505E

E3ZLT86DOMS

OMRON

1 Pcs.

Laser-cc 3h Barrier 50m PNP M8 Receiver Photoelectric sensor, rectangular housing, red laser class 1, through-beam, receiver unit, PNP, Light-ON/Dark-ON, M8 4-pin connector

Automation > Through beam photoelectric sensor
E3Z

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron E3Z-LT86-D is a laser-based photoelectric receiver built to deliver long-range target detection and accurate alignment in demanding industrial plant layouts. Laser through-beam receivers utilize concentrated light sources to maintain reliable switching performance over extended distances and across hazardous zones. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Shape: Cuboid
  • Sensing method: Through-beam
  • Sensing distance: 60000 mm
  • Setting method: Manual adjustment
  • Connection method: Connector M8 - 4 pin
  • Output type: PNP
  • Operation mode: Dark-ON, Light-ON
  • Response time: 1 ms
  • Material housing: PBT
  • Type of light: Laser diode, red light
  • Laser class: 1
  • Spot size: 5 mm
  • Power supply voltage: 12-24 V

More info

▲

Specifications

ShapeCuboid
Sensing methodThrough-beam
Sensing distance60000 mm
Setting methodManual adjustment
Connection methodConnector M8 - 4 pin
Output typePNP
Operation modeDark-ON, Light-ON
Response time1 ms
Material housingPBT
Thread sizeOther
Type of lightLaser diode, red light
Laser class1
Spot size5 mm
Power supply voltage12-24 V
