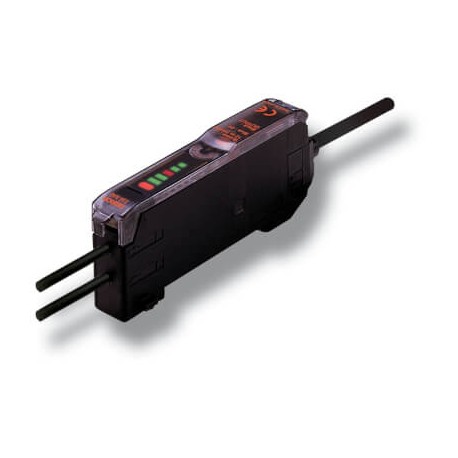

E3X-NA21 2M E3X 7017M E3XNA212MOMS OMRON Manual cc 3h NPN, Timing Alarm
E3X-NA21 2M
E3X 7017M
E3XNA212MOMS
OMRON
1 Pcs.
Manual cc 3h NPN, Timing Alarm
Photoelectric sensor, optical fibre amplifier, bar LED display, diagnostic output, DC, 3-wire, NPN, 2 m cable
Automation > Optical fibre sensor / optical fibre amplifier
E3X
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
ShapeCuboid, rail mountingSensing methodAmplifierSetting methodManual adjustmentConnection methodCableCable length2 mOutput typeNPNOperation modeDark-ON, Light-ONResponse time0.2 msMaterial housingPBTType of lightPolarity free red lightPower supply voltage12-24 VFunctionsTimerApplicationObject detectionNumber of channels1Degree of protection (IP)IP50Number of digital outputs1
| Feature Name | Feature Value |
|---|---|
| Voltage type (EF000187) | DC |
| Construction type housing (EF004008) | Cuboid |
| Laser protection class (EF004027) | Other |
| Degree of protection (IP) (EF005474) | IP50 |
| Setting procedure (EF003994) | Manual adjustment |
| Indication (EF000350) | Bar graph |
| Type of switch function (EF003963) | Programmable/configurable |
| Type of electric connection (EF003961) | Cable |
| Material fibre optics core (EF004137) | Plastic |
| Housing material (EF001596) | Plastic |
| Type of light (EF004029) | Polarity free red light |
| Material of cable sheath (EF004136) | Polyvinyl chloride (PVC) |
| Type of switching output (EF003962) | NPN |
| Operation agent-safety class (EF003982) | Safety class 3 |
| Analogue output -10 V ... +10 V (EF006809) | No |
| Analogue output 0 V ... 10 V (EF006807) | No |
| Analogue output 0 mA ... 20 mA (EF006808) | No |
| With blanking function (EF003968) | No |
| Analogue output 4 mA ... 20 mA (EF006810) | No |
| With time function (EF003582) | No |
| AWG-number (EF007010) | 24 |
| No-load current (EF004028) | 35 mA |
| Number of semiconductor outputs with signalling function (EF003945) | 2 |
| Height amplifier (EF007284) | 31.5 mm |
| Length amplifier (EF007335) | 67.3 mm |
| Max. output current (EF001315) | 50 mA |
| Switching frequency (EF003587) | 2500 Hz |
| Number of contact energized outputs with signalling function (EF003946) | 0 |
| Width amplifier (EF007095) | 10 mm |
| Rated control supply voltage DC (EF003980) | 12 V |
| Ambient temperature (EF002386) | -25 °C |
