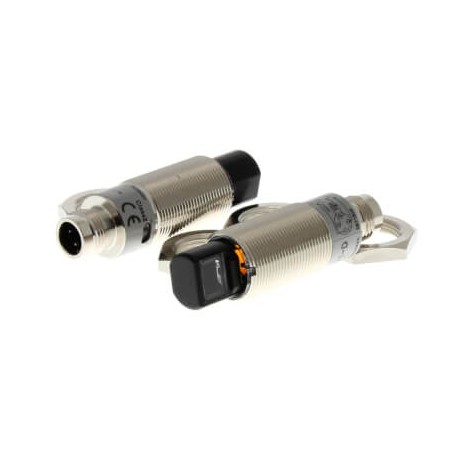

OMRON E3RB-TP21 E3RB-TP21 E3RB2015B E3RBTP21OMI OMRON Metal Radial Barrier 15m PNP M12 Connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3RB-TP21 E3RB2015B E3RBTP21OMI OMRON Metal Radial Barrier 15m PNP M12 Connector

E3RB-TP21

E3RB2015B

E3RBTP21OMI

OMRON

1 Pcs.

Metal Radial Barrier 15m PNP M12 Connector Photoelectric sensor, M18 threaded barrel, radial type, metal, red LED, through-beam, 15 m, PNP, Light-ON/Dark-ON, M12 connector

Automation > Through beam photoelectric sensor
E3FA / E3RA

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron E3RB-TP21 is a cylindrical photoelectric sensor built for robust industrial sensing applications, including conveyor systems and sorting stations. It detects targets by interrupting a light path between emitter and receiver units, integrating seamlessly into machine safety and control architectures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP67
  • Material of optical surface (EF004134): Plastic
  • Housing material (EF001596): Metal
  • Operation agent-safety class (EF003982): Safety class 3
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Scope of delivery of the one-way system (EF004032): Transmitter and receiver
  • Setting procedure (EF003994): Manual adjustment
  • Sensing mode (EF007503): Light-/dark switching
  • Type of switch function (EF003963): Programmable/configurable
  • Type of electric connection (EF003961): Connector M12
  • Type of light (EF004029): Polarity free red light
  • Material of cable sheath (EF004136): Polyvinyl chloride (PVC)
  • Type of switching output (EF003962): PNP
  • With communication interface RS-485 (EF007314): No
  • With communication interface SSD (EF007315): No

More info

▲
ShapeCylindrical radialSensing methodThrough-beamSensing distance15000 mmSetting methodManual adjustmentConnection methodConnector M12Output typePNPOperation modeDark-ON, Light-ONResponse time0.5 msMaterial housingBrass, nickel platedThread sizeM18Product Length (unpacked)61 mmType of lightPolarity free red lightPower supply voltage10-30 VDegree of protection (IP)IP67/IP69K

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
