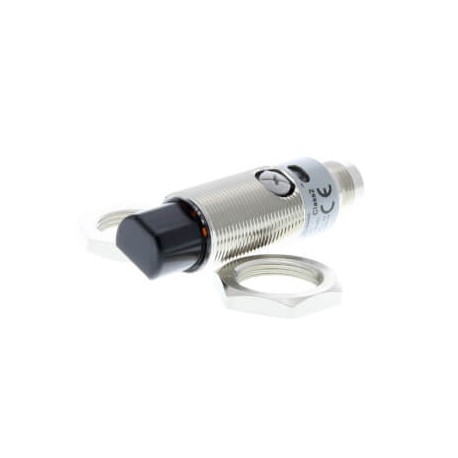

OMRON E3RB-DP22 E3RB-DP22 E3RB2018G E3RBDP22OMI OMRON Metal Radial Reflex 300mm PNP M12 Connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3RB-DP22 E3RB2018G E3RBDP22OMI OMRON Metal Radial Reflex 300mm PNP M12 Connector

E3RB-DP22

E3RB2018G

E3RBDP22OMI

OMRON

1 Pcs.

Metal Radial Reflex 300mm PNP M12 Connector Photoelectric sensor, M18 threaded barrel, radial type, metal, red LED, diffuse, 300 mm, PNP, Light-ON/Dark-ON, M12 connector

Automation > Diffuse reflective photoelectric sensor
E3FA / E3RA

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron cylindrical metal photoelectric sensor model E3RB-DP22 offers robust threaded housing for stable mounting in harsh industrial locations. Cylindrical diffuse sensors are widely used to monitor moving products on automated sorting tables and assembly stations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP67
  • Material of optical surface (EF004134): Plastic
  • Housing material (EF001596): Metal
  • Operation agent-safety class (EF003982): Safety class 3
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Setting procedure (EF003994): Manual adjustment
  • Sensing mode (EF007503): Light-/dark switching
  • Type of switch function (EF003963): Programmable/configurable
  • Type of electric connection (EF003961): Connector M12
  • Type of light (EF004029): Polarity free red light
  • Type of switching output (EF003962): PNP
  • With communication interface RS-485 (EF007314): No
  • With communication interface SSD (EF007315): No
  • With communication interface SSI (EF007316): No
  • Analogue output 0 mA ... 20 mA (EF006808): No

More info

▲
ShapeCylindrical radialSensing methodDiffuse reflectiveSensing distance300 mmSetting methodManual adjustmentConnection methodConnector M12Output typePNPOperation modeDark-ON, Light-ONResponse time0.5 msMaterial housingBrass, nickel platedThread sizeM18Product Length (unpacked)61 mmType of lightPolarity free red lightPower supply voltage10-30 VDegree of protection (IP)IP67/IP69K
