> OMRON > Photoelectric sensors > E3FA / E3RA > E3RA2013A

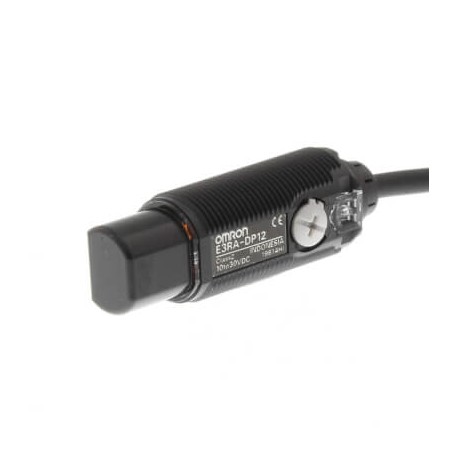

OMRON E3RA-DP12 2M E3RA-DP12 2M E3RA2013A E3RADP122MOMI OMRON Plastic Reflex 300mm PNP Cable 2m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3RA-DP12 2M E3RA2013A E3RADP122MOMI OMRON Plastic Reflex 300mm PNP Cable 2m

E3RA-DP12 2M

E3RA2013A

E3RADP122MOMI

OMRON

1 Pcs.

Plastic Reflex 300mm PNP Cable 2m Photoelectric sensor, M18 threaded barrel, radial type, plastic, red LED, diffuse, 300 mm, PNP, Light-ON/Dark-ON, 2 m cable

Automation > Diffuse reflective photoelectric sensor
E3FA / E3RA

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Omron E3RA-DP12 2M plastic reflex 300mm PNP cable 2m functions as a photoelectric sensor designed for non-contact object detection in industrial automation settings. Such sensors project a light beam toward a target or reflector, registering changes in the returned light to monitor position, verify presence, or count items along a production line.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Degree of protection (IP) (EF005474): IP67
  • Setting procedure (EF003994): Manual adjustment
  • Material of optical surface (EF004134): Plastic
  • Sensing mode (EF007503): Light-/dark switching
  • Type of switch function (EF003963): Programmable/configurable
  • Type of electric connection (EF003961): Cable
  • Housing material (EF001596): Plastic
  • Type of light (EF004029): Polarity free red light
  • Material of cable sheath (EF004136): Polyvinyl chloride (PVC)
  • Type of switching output (EF003962): PNP
  • Operation agent-safety class (EF003982): Safety class 3
  • With communication interface RS-485 (EF007314): No
  • Analogue output -10 V ... +10 V (EF006809): No
  • With communication interface SSD (EF007315): No

More info

▲
ShapeCylindrical radialSensing methodDiffuse reflectiveSensing distance300 mmSetting methodManual adjustmentConnection methodCableCable length2 mOutput typePNPOperation modeDark-ON, Light-ONResponse time0.5 msMaterial housingABSThread sizeM18Product Length (unpacked)54 mmType of lightPolarity free red lightPower supply voltage10-30 VDegree of protection (IP)IP67/IP69K

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
