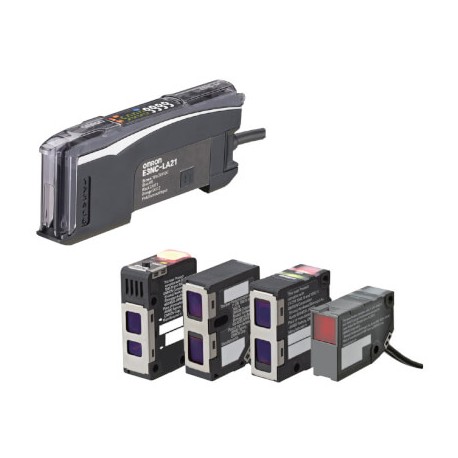

OMRON E3NC-SH250H 2M E3NC-SH250H 2M E3NC0012G E3NCSH250H2M OMRON Head sensor Laser class 2 E3NC-S 35-250mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3NC-SH250H 2M E3NC0012G E3NCSH250H2M OMRON Head sensor Laser class 2 E3NC-S 35-250mm

E3NC-SH250H 2M

E3NC0012G

E3NCSH250H2M

OMRON

1 Pcs.

Head sensor Laser class 2 E3NC-S 35-250mm CMOS Laser head, 35-250mm, 1mm spot, Class 2 Laser

Automation > Light scanner with background masking
N-Smart

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron laser head sensor (E3NC-SH250H 2M) provides precision distance measurement and object sensing in automated machinery using focused light beams for high-accuracy positioning tasks.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP67
  • Material of optical surface (EF004134): Plastic
  • Housing material (EF001596): Plastic
  • Operation agent-safety class (EF003982): Safety class 3
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cuboid
  • Laser protection class (EF004027): Class 2
  • Setting procedure (EF003994): Teach-In
  • Sensing mode (EF007503): Light-/dark switching
  • Triangulation (EF008296): Background fade-out
  • Type of electric connection (EF003961): Cable
  • Type of light (EF004029): Laser diode, red light
  • Material of cable sheath (EF004136): Polyvinyl chloride (PVC)
  • With communication interface RS-485 (EF007314): No
  • With communication interface SSD (EF007315): No
  • With communication interface SSI (EF007316): No

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
