View larger
Images are for illustrative purposes only. Please refer to data sheet for details

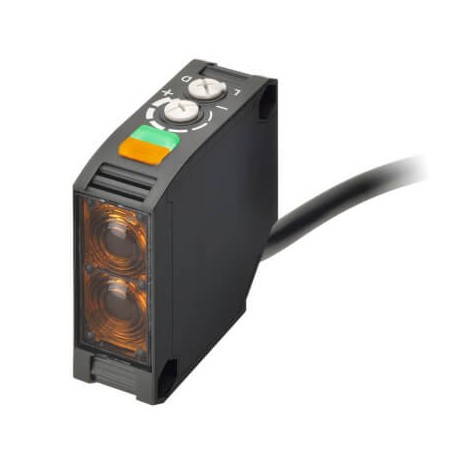

E3JK-RR12 5M E3JK7086M E3JKRR125MOMS OMRON Photoelectric sensor 50x50 Multialim. Mirror Polariz 6m Relay Cab..
E3JK-RR12 5M
E3JK7086M
E3JKRR125MOMS
OMRON
1 Pcs.
Photoelectric sensor 50x50 Multialim. Mirror Polariz 6m Relay Cable 5m LITE
Photoelectric sensor, square body, red LED, retro-reflective (polarized), 6m, AC/DC, Relay, 5 m cable
Automation > Retroreflective photoelectric sensor
E3JK-Lite
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
ShapeCuboidSensing methodRetro-reflectiveSensing distance10000 mmSensing distance (min.)100 mmSetting methodManual adjustmentConnection methodCableCable length5 mOutput typeRelayOperation modeDark-ON, Light-ONResponse time20 msMaterial housingABSThread sizeOtherProduct Width (unpacked)18 mmProduct Height (unpacked)52 mmProduct Depth (unpacked)50 mmType of lightPolarized red lightPower supply voltage24-240 VFeaturesM.S.R.
| Feature Name | Feature Value |
|---|---|
| Explosion safety category for dust (EF003998) | None |
| Voltage type (EF000187) | AC/DC |
| Construction type housing (EF004008) | Cuboid |
| Laser protection class (EF004027) | None |
| Degree of protection (NEMA) (EF011959) | Other |
| Degree of protection (IP) (EF005474) | IP64 |
| Setting procedure (EF003994) | Manual adjustment |
| Material of optical surface (EF004134) | Plastic |
| Sensing mode (EF007503) | Light-/dark switching |
| Type of interface for safety communication (EF003956) | Other |
| Type of switch function (EF003963) | Change-over contact (NO/NC) |
| Type of electric connection (EF003961) | Cable |
| Housing material (EF001596) | Plastic |
| Type of light (EF004029) | Polarity free red light |
| Type of switching output (EF003962) | Relay contact |
| Operation agent-safety class (EF003982) | Safety class 0 |
| Explosion safety category for gas (EF003997) | None |
| With communication interface RS-485 (EF007314) | No |
| Analogue output -10 V ... +10 V (EF006809) | No |
| With communication interface SSD (EF007315) | No |
| With communication interface SSI (EF007316) | No |
| Analogue output 0 V ... 10 V (EF006807) | No |
| Analogue output 0 mA ... 20 mA (EF006808) | No |
| With communication interface RS-232 (EF007312) | No |
| With communication interface DeviceNet (EF007308) | No |
| With monitoring function downstream switching devices (EF004052) | No |
| With reflector (EF007448) | No |
| With communication interface PROFIBUS (EF007311) | No |
| Suitable for safety functions (EF001597) | No |
| With communication interface analogue (EF007305) | No |
| With communication interface INTERBUS (EF007310) | No |
| With communication interface RS-422 (EF007313) | No |
| With communication interface CANOpen (EF007307) | No |
| With communication interface Ethernet (EF007309) | No |
| Analogue output 4 mA ... 20 mA (EF006810) | No |
| With time function (EF003582) | No |
| Pre failure notice (EF004129) | No |
| With communication interface AS-Interface (EF007306) | No |
| With other analogue output (EF007485) | No |
| With restart blockage (EF004054) | No |
| Number of protected contact energized outputs (EF003952) | 0 |
| Max. switching distance (EF007367) | 7000 mm |
| Number of semiconductor outputs with signalling function (EF003945) | 0 |
| Wavelength of the sensor (EF004132) | 624 nm |
| Response time (EF004094) | 20 ms |
| Number of protected semiconductor outputs (EF003951) | 0 |
| Min. reflector distance (EF004046) | 100 mm |
| Width sensor (EF007094) | 18 mm |
| Rated switching distance (EF008289) | 7000 mm |
| Height of sensor (EF007283) | 50 mm |
| Max. output current (EF001315) | 3 mA |
| Length of sensor (EF007334) | 50 mm |
| Switching frequency (EF003587) | 25 Hz |
| Number of contact energized outputs with signalling function (EF003946) | 1 |
| Rated control supply voltage AC 60 Hz (EF003979) | 21.6 V |
| Rated control supply voltage AC 50 Hz (EF003978) | 21.6 V |
| Rated control supply voltage DC (EF003980) | 21.6 V |
| Ambient temperature (EF002386) | -25 °C |
