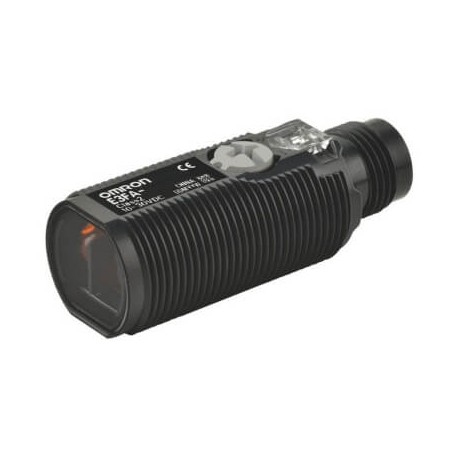

OMRON E3FA-DP24 E3FA-DP24 E3FA0056C E3FADP24OMS OMRON Plastic Reflex Infrared 100mm PNP M12 Connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3FA-DP24 E3FA0056C E3FADP24OMS OMRON Plastic Reflex Infrared 100mm PNP M12 Connector

E3FA-DP24

E3FA0056C

E3FADP24OMS

OMRON

1 Pcs.

Plastic Reflex Infrared 100mm PNP M12 Connector Photoelectric sensor, M18 threaded barrel, plastic, infrared LED, diffuse, 100 mm, PNP, Light-ON/Dark-ON, M12 connector

Automation > Diffuse reflective photoelectric sensor
E3FA / E3RA

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron E3FA-DP24 is a threaded cylindrical photoelectric reflex sensor engineered for direct object detection without the need for a separate receiver unit. Diffuse and retroreflective optical sensors are commonly installed on industrial machinery to spot targets, check material presence, and guide positioning operations.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP67
  • Material of optical surface (EF004134): Plastic
  • Housing material (EF001596): Plastic
  • Operation agent-safety class (EF003982): Safety class 3
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Setting procedure (EF003994): Manual adjustment
  • Sensing mode (EF007503): Light-/dark switching
  • Type of switch function (EF003963): Programmable/configurable
  • Type of electric connection (EF003961): Connector M12
  • Type of light (EF004029): Infrared light
  • Type of switching output (EF003962): PNP
  • With communication interface RS-485 (EF007314): No
  • With communication interface SSD (EF007315): No
  • With communication interface SSI (EF007316): No
  • Analogue output 0 mA ... 20 mA (EF006808): No

More info

▲
ShapeCylindrical axialSensing methodDiffuse reflectiveSensing distance100 mmSetting methodManual adjustmentConnection methodConnector M12Output typePNPOperation modeDark-ON, Light-ONResponse time0.5 msMaterial housingABSThread sizeM18Product Length (unpacked)45 mmType of lightInfrared lightPower supply voltage10-30 VDegree of protection (IP)IP67/IP69K
