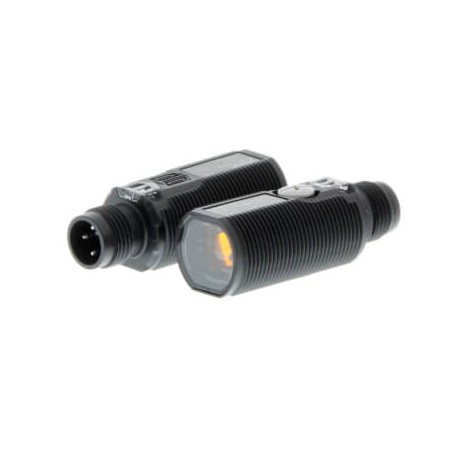

OMRON E3F1-TP21 E3F1-TP21 E3F12012B E3F1TP21OMI OMRON Plastic Barrier 15m PNP Connector M12 Lite View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3F1-TP21 E3F12012B E3F1TP21OMI OMRON Plastic Barrier 15m PNP Connector M12 Lite

E3F1-TP21

E3F12012B

E3F1TP21OMI

OMRON

1 Pcs.

Plastic Barrier 15m PNP Connector M12 Lite Photoelectric sensor, M18 threaded barrel, plastic, red LED, through-beam, 15 m, PNP, Light-ON/Dark-ON, M12 connector

Automation > Through beam photoelectric sensor
E3F1

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

E3F1-TP21 Omron photoelectric sensor delivers precise non-contact detection capabilities for factory automation, sorting machinery, and assembly lines. Threaded barrel designs of this type allow secure installation in tight industrial spaces for reliable part tracking.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Scope of delivery of the one-way system (EF004032): Transmitter and receiver
  • Degree of protection (IP) (EF005474): IP66
  • Setting procedure (EF003994): Manual adjustment
  • Material of optical surface (EF004134): Plastic
  • Sensing mode (EF007503): Light-/dark switching
  • Type of switch function (EF003963): Programmable/configurable
  • Type of electric connection (EF003961): Connector M12
  • Housing material (EF001596): Plastic
  • Type of light (EF004029): Polarity free red light
  • Material of cable sheath (EF004136): Polyvinyl chloride (PVC)
  • Type of switching output (EF003962): PNP
  • Operation agent-safety class (EF003982): Safety class 3
  • With communication interface RS-485 (EF007314): No
  • Analogue output -10 V ... +10 V (EF006809): No

More info

▲
ShapeCylindrical axialSensing methodThrough-beamSensing distance15000 mmSetting methodManual adjustmentConnection methodConnector M12Output typePNPOperation modeDark-ON, Light-ONResponse time0.5 msMaterial housingABSThread sizeM18Product Length (unpacked)45 mmType of lightPolarity free red lightPower supply voltage10-30 VDegree of protection (IP)IP66
