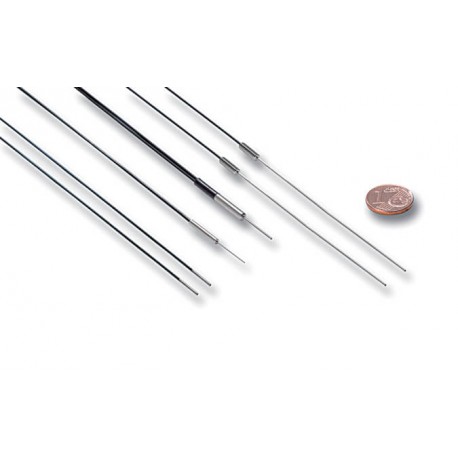

OMRON E32-TC200B4R E32-TC200B4R E32 6077M E32TC200B4R OMRON Barrier Screw M4 Outbound 40mm Flexible View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E32-TC200B4R E32 6077M E32TC200B4R OMRON Barrier Screw M4 Outbound 40mm Flexible

E32-TC200B4R

E32 6077M

E32TC200B4R

OMRON

1 Pcs.

Barrier Screw M4 Outbound 40mm Flexible Threaded Barrier M4 Outgoing 40mm Flexible

Automation > Optical fibre sensor / optical fibre amplifier
E32

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for threaded mounting in tight industrial spaces, the Omron E32-TC200B4R barrier screw fiber optic component provides dependable object detection via separated emitter and receiver tips. These sensors integrate into automated machinery to facilitate precise material handling, sorting, and counting routines without electrical interference.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • E39-F16: Focal lens (vacuum resistant, heat resistant)
  • - For fiber with dia 1.0: E39-F14
  • - For fibers with dia between 1.0 and 2.2: E39-F15
  • - For M3 through beam type sensors - Length 1 m: E39-F32B
  • - For M4 through beam type sensors - Length 1 m: E39-F32C
  • - For M6 diffuse type sensors - Length 1 m: E39-F32D

More info

▲
  • Sizes from dia 500 μm to 3 mm
  • Side view models with precision axis alignment for highest accuracy
  • Bendable sleeves for precision positioning

Accessories

Accessories

Shape

Type

Comment

Order code

Focal lens

- Extends sensing distance by more than 500%

- For M4 Through beam fibers E32-TC200, E32-ET11R, E32-T11 (fits M2.6 thread)

- 2 pcs per set

E39-F1

Focal lens (side view)

- For M4 through beam fibers E32-TC200, E32-ET11R, E32-T11,
E32-T61-S, E32-T81R-S (fits M2.6 thread)

- Temperature range -40 to 200°C

- 2 pcs per set

E39-F2

Focal lens (variable)

- For precision detection with E32-D32

E39-F3A

Focal lens

- For precision detection with E32-EC41

E39-F3A-5

- For precision detection with E32-EC41

E39-F3B

- For precision detection with M6 coaxial diffuse reflective fibers (e.g. E32-CC200)

E39-F18

Focal lens (side view, variable)

- For precision detection with E32-EC31

E39-EF51

Focal lens (heat resistant)

- Extends sensing distance by more than 500%

- For M4 through beam fibers E32-ET51, E32-T61, E32-T61-S,
E32-T81R, E32-T81R-S (fits M4 thread)

- Temperature range -60 to 350°C

- 2 pcs per set

E39-EF1-37-2

E39-F16

Focal lens (vacuum resistant, heat resistant)

- Fits E32-T51V and E32-T54V (fits M2.6 thread)

- 2 units per set

- Heat resistant up to 120°C

E39-F1V

Fiber cutter

- Included in applicable fiber

E39-F4

Thin fiber attachment

- Amplifier adapter for thin fibers

- Included in applicable fiber (2 sets)

E39-F9

Sleeve bender

- For E32-TC200B(4)

- For E32-TC200F(4)

- For E32-DC200F(4)

E39-F11

Single fiber extension
connector

- Fiber extension connector for 2.2 mm dia standard fibers

- One unit

E39-F10

Dual fiber extension connector

- For fibers with dia 2.2

E39-F13

- For fiber with dia 1.0

E39-F14

- For fibers with dia between 1.0 and 2.2

E39-F15

Protective spiral tube1

- For M3 diffuse type sensors

- Length 1 m

E39-F32A

- For M3 through beam type sensors

- Length 1 m

E39-F32B

- For M4 through beam type sensors

- Length 1 m

E39-F32C

- For M6 diffuse type sensors

- Length 1 m

E39-F32D

Fiber on roll2

- Dia 2.2 mm

- Standard monocore, 10 mm bending radius

- -40 to 80°C

E32-E01 100M

- Dia 1.1 mm

- Standard monocore, 15 mm bending radius

- -40 to 80°C

E32-E02 100M

- Dia 2.2 mm

- High flex multicore, 1 mm bending radius

- -40 to 80°C

E32-E01R 100M

- Dia 1.1 mm

- High flex multicore, 1 mm bending radius

- -40 to 80°C

E32-E02R 100M

- Dia 2.2 mm

- High temperature monocore, 20 mm bending radius

- -60 to 150°C

E32-E05 100M


1.Protective spiral tubes with 0.5 m length are available. Add '5' to order code ... e.g. E39-F32A5

2.Fiber length 100 m on a roll - cut to length

1.Protective spiral tubes with 0.5 m length are available. Add '5' to order code ... e.g. E39-F32A5

2.Fiber length 100 m on a roll - cut to length
