> OMRON > Photoelectric sensors > E32 > E32 7054F

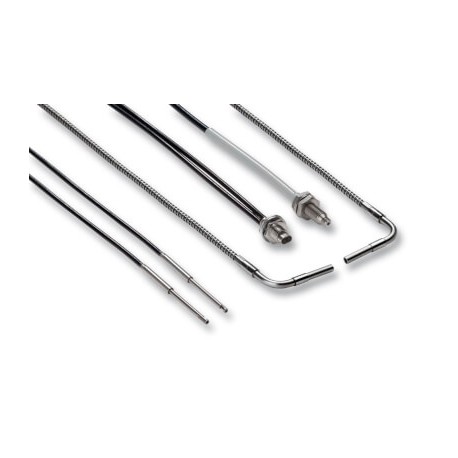

OMRON E32-T61-S 3M E32-T61-S 3M E32 7054F E32T61S3M,1 OMRON Barrier high temperature to 350 ° c. Screw M4 3m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E32-T61-S 3M E32 7054F E32T61S3M,1 OMRON Barrier high temperature to 350 ° c. Screw M4 3m

E32-T61-S 3M

E32 7054F

E32T61S3M.1

OMRON

1 Pcs.

Barrier high temperature to 350 ° c. Screw M4 3m High barrier temperature 350ºC Threaded M4 3m

Automation > Optical fibre sensor / optical fibre amplifier
E32

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Features

Heat resistant fiber sensor heads

The wide range of heat resistant fibers provides long sensor lifetime with highest protection in demanding environments.

  • Heat resistant up to 400°C
  • Sizes from dia 2 mm to M6
  • Models for long distances or high detection accuracy

Heat resistance

heat resistance 02 prod

The temperature range optimised material selection provides best application fit and value-performance ratio.

High mechanical protection

high mechanical protection prod

Stainless steel spiral coating for flexibility with highest mechanical protection.

Ordering information

Sensor type

Size

Sensing distance (in mm)1

Key feature

Order code

E3X-HD

E3NX-FA

For E3NX-FA and E3X-HD amplifiers

For E3X-NA amplifier


M4

3000

4000

-40°C to 150°C

E32-T51 2M

800

1200

-40°C to 100°C2, high-flex

E32-T51R 2M

550

820

-40°C to 200°C

E32-T81R-S 2M

900

1350

-60°C to 350°C

E32-T61-S 2M


dia 2 mm

450

670

-40°C to 150°C

E32-T54 2M


dia 3 mm

2600

3900

-40°C to 200°C

E32-T84S-S 2M


M6

500

750

-40°C to 150°C

E32-D51 2M

280

420

-40°C to 100°C2, high-flex

E32-D51R 2M

180

270

-40°C to 200°C

E32-D81R-S 2M

E32-D81R 2M


180

270

-60°C to 350°C

E32-D61-S 2M

E32-D61


M4

120

180

-40°C to 400°C

E32-D73-S 2M

E32-D73


23×20×9 mm

15-38

-40°C to 150°C

E32-A09H 2M

30×24×9 mm

20-30

-40°C to 300°C

E32-A09H2 2M


25×18×5 mm

1-5

-40°C to 300°C

E32-L64 2M

36×18×5 mm

5-18

E32-L66 2M

Specifications

Item

-40°C to 150°C

-40°C to 100°C

-40°C to 150°C

-40°C to 200°C

-40°C to 300°C

-60°C to 350°C

-40°C to 400°C

E32-_51

E32-D51R/T51R

E32-T54

E32-A09H

E32-_81_

E32-T84_

E32-A09H2

E32-L6_

E32-_61_

E32-D73_

Permissible bending radius (in mm)

R35

R2

R35

R10

R25

Cut to length

Yes

No

Material

Head

Brass-nickel
plated

Stainless steel

Aluminium

Stainless steel

Fiber

PMMA

Acrylate resin

PMMA

Glass

Sheath

Fluoro resin

Polyurethane resin

Fluoro resin

Stainless steel spiral coating

Stainless steel tube

Stainless steel spiral coating

Stainless steel tube

Degree of protection

IEC 60529 IP67

IEC 60529 IP50

IEC 60529 IP67

IEC 60529 IP40

IEC 60529 IP67


1.Sensing distance measured in Standard Mode

2.Short term resistance. For continuous operation -40°C to 90°C
