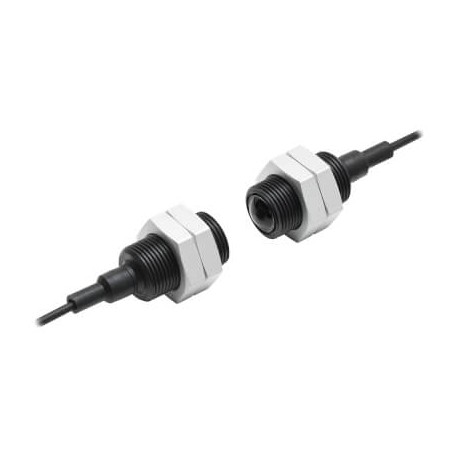

E32-T17L 10M E32 1519G E32T17L10M OMRON Barrier Long-distance Threaded M4 With lenses Cable 10m
E32-T17L 10M
E32 1519G
E32T17L10M
OMRON
1 Pcs.
Barrier Long-distance Threaded M4 With lenses Cable 10m
Fiber optic sensor head, through-beam, long distance detection, M14 cylindrical axial, R25 fiber, 10 m cable
Automation > Optical fibre sensor / optical fibre amplifier
E32
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Sensing methodThrough-beamShapeThreadedSizeM14ApplicationLong distance detectionTemperature range-40-70 °CSensing distance20000 mmCable length10 mBending radius25 mmFree cutMaterial corePlasticDegree of protection (IP)IP67Sensing surface orientationTop-viewMaterial sheathPolyethylene
| Feature Name | Feature Value |
|---|---|
| Voltage type (EF000187) | Other |
| Construction type housing (EF004008) | Cylinder, screw-thread |
| Laser protection class (EF004027) | Other |
| Setting procedure (EF003994) | Other |
| Indication (EF000350) | Other |
| Type of switch function (EF003963) | Other |
| Material fibre optics core (EF004137) | Plastic |
| Housing material (EF001596) | Plastic |
| Type of light (EF004029) | Polarity free red light |
| Material of cable sheath (EF004136) | Other |
| Type of switching output (EF003962) | Other |
| Operation agent-safety class (EF003982) | Safety class 0 |
| Analogue output -10 V ... +10 V (EF006809) | No |
| Analogue output 0 V ... 10 V (EF006807) | No |
| Analogue output 0 mA ... 20 mA (EF006808) | No |
| With blanking function (EF003968) | No |
| Analogue output 4 mA ... 20 mA (EF006810) | No |
| With time function (EF003582) | No |
| Nominal operating distance (EF004059) | 20000 mm |
| Diameter sensor (EF007111) | 14 mm |
| Ambient temperature (EF002386) | -40 °C |
