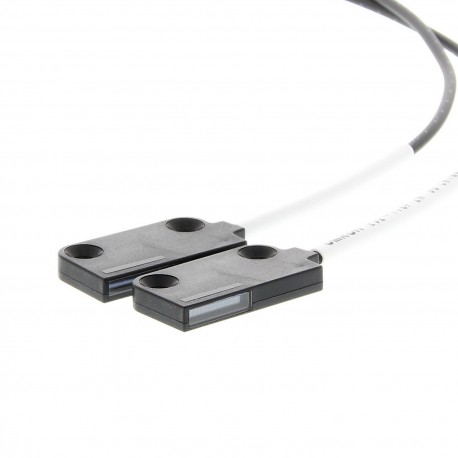

OMRON E32-T16P 5M E32-T16P 5M E32 5149E E32T16P5M OMRON Barrier Zonal 11mm Cable 5m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E32-T16P 5M E32 5149E E32T16P5M OMRON Barrier Zonal 11mm Cable 5m

E32-T16P 5M

E32 5149E

E32T16P5M

OMRON

1 Pcs.

Barrier Zonal 11mm Cable 5m Zonal Barrier 11mm Cable 5m

Automation > Accessories/spare parts for sensor technology
E32

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Precise object detection in restricted spaces is achieved using the Omron E32-T16P 5M barrier zonal cable fiber optic assembly. Fiber optic sensor heads allow reliable presence sensing in high-temperature, confined, or electrically noisy areas where standard photoelectric sensors cannot operate.

Specific pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • E39-F16: Focal lens (vacuum resistant, heat resistant)
  • - For fiber with dia 1.0: E39-F14
  • - For fibers with dia between 1.0 and 2.2: E39-F15
  • - For M3 through beam type sensors - Length 1 m: E39-F32B
  • - For M4 through beam type sensors - Length 1 m: E39-F32C
  • - For M6 diffuse type sensors - Length 1 m: E39-F32D

More info

▲
  • Area monitoring up to 70 mm height
  • Multi-beam sensor with 4 seperate heads for flexible detection points
  • Standard or high flex fibers

Accessories

Accessories

Shape

Type

Comment

Order code

Focal lens

- Extends sensing distance by more than 500%

- For M4 Through beam fibers E32-TC200, E32-ET11R, E32-T11 (fits M2.6 thread)

- 2 pcs per set

E39-F1

Focal lens (side view)

- For M4 through beam fibers E32-TC200, E32-ET11R, E32-T11,
E32-T61-S, E32-T81R-S (fits M2.6 thread)

- Temperature range -40 to 200°C

- 2 pcs per set

E39-F2

Focal lens (variable)

- For precision detection with E32-D32

E39-F3A

Focal lens

- For precision detection with E32-EC41

E39-F3A-5

- For precision detection with E32-EC41

E39-F3B

- For precision detection with M6 coaxial diffuse reflective fibers (e.g. E32-CC200)

E39-F18

Focal lens (side view, variable)

- For precision detection with E32-EC31

E39-EF51

Focal lens (heat resistant)

- Extends sensing distance by more than 500%

- For M4 through beam fibers E32-ET51, E32-T61, E32-T61-S,
E32-T81R, E32-T81R-S (fits M4 thread)

- Temperature range -60 to 350°C

- 2 pcs per set

E39-EF1-37-2

E39-F16

Focal lens (vacuum resistant, heat resistant)

- Fits E32-T51V and E32-T54V (fits M2.6 thread)

- 2 units per set

- Heat resistant up to 120°C

E39-F1V

Fiber cutter

- Included in applicable fiber

E39-F4

Thin fiber attachment

- Amplifier adapter for thin fibers

- Included in applicable fiber (2 sets)

E39-F9

Sleeve bender

- For E32-TC200B(4)

- For E32-TC200F(4)

- For E32-DC200F(4)

E39-F11

Single fiber extension
connector

- Fiber extension connector for 2.2 mm dia standard fibers

- One unit

E39-F10

Dual fiber extension connector

- For fibers with dia 2.2

E39-F13

- For fiber with dia 1.0

E39-F14

- For fibers with dia between 1.0 and 2.2

E39-F15

Protective spiral tube1

- For M3 diffuse type sensors

- Length 1 m

E39-F32A

- For M3 through beam type sensors

- Length 1 m

E39-F32B

- For M4 through beam type sensors

- Length 1 m

E39-F32C

- For M6 diffuse type sensors

- Length 1 m

E39-F32D

Fiber on roll2

- Dia 2.2 mm

- Standard monocore, 10 mm bending radius

- -40 to 80°C

E32-E01 100M

- Dia 1.1 mm

- Standard monocore, 15 mm bending radius

- -40 to 80°C

E32-E02 100M

- Dia 2.2 mm

- High flex multicore, 1 mm bending radius

- -40 to 80°C

E32-E01R 100M

- Dia 1.1 mm

- High flex multicore, 1 mm bending radius

- -40 to 80°C

E32-E02R 100M

- Dia 2.2 mm

- High temperature monocore, 20 mm bending radius

- -60 to 150°C

E32-E05 100M


1.Protective spiral tubes with 0.5 m length are available. Add '5' to order code ... e.g. E39-F32A5

2.Fiber length 100 m on a roll - cut to length

1.Protective spiral tubes with 0.5 m length are available. Add '5' to order code ... e.g. E39-F32A5

2.Fiber length 100 m on a roll - cut to length
