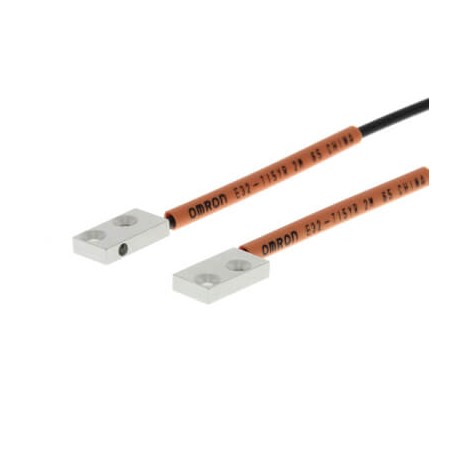

OMRON E32-T15Y 2M E32-T15Y 2M E32 1574M E32T15Y2M,1 OMRON Barrier lateral 15x10x3mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E32-T15Y 2M E32 1574M E32T15Y2M,1 OMRON Barrier lateral 15x10x3mm

E32-T15Y 2M

E32 1574M

E32T15Y2M.1

OMRON

1 Pcs.

Barrier lateral 15x10x3mm Fiber optic sensor head, through-beam, square, side-view, R25 fiber, 2 m cable

Automation > Optical fibre sensor / optical fibre amplifier
E32

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron E32-T15Y 2M photoelectric barrier sensor head is designed for through-beam optical detection tasks, identifying objects reliably across conveyor systems and assembly jigs. Industrial automation setups use these robust optical fibers to track items regardless of surface finish or color.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Rod
  • Degree of protection (IP) (EF005474): IP67
  • Type of switch function (EF003963): Programmable/configurable
  • Type of electric connection (EF003961): Cable
  • Material fibre optics core (EF004137): Plastic
  • Housing material (EF001596): Plastic
  • Type of light (EF004029): Polarity free red light
  • Material of cable sheath (EF004136): Polyvinyl chloride (PVC)
  • Operation agent-safety class (EF003982): Safety class 0
  • Analogue output -10 V ... +10 V (EF006809): No
  • Analogue output 0 V ... 10 V (EF006807): No
  • Analogue output 0 mA ... 20 mA (EF006808): No
  • With blanking function (EF003968): No
  • Analogue output 4 mA ... 20 mA (EF006810): No
  • With time function (EF003582): No
  • Nominal operating distance (EF004059): 1400 mm

More info

▲
Sensing methodThrough-beamShapeSquareProduct Width (unpacked)8 mmProduct Depth (unpacked)3 mmProduct Height (unpacked)15 mmApplicationObject detectionTemperature range-40-70 °CSensing distance1120 mmCable length2 mFree cutMaterial corePlasticDegree of protection (IP)IP67Sensing surface orientationSide-viewMaterial sheathPolyethylene
