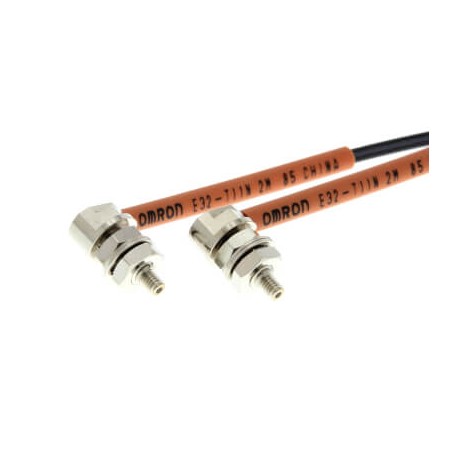

OMRON E32-T11N 2M E32-T11N 2M E32 1512M E32T11N2M,1 OMRON Angled Barrier Screw M4 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E32-T11N 2M E32 1512M E32T11N2M,1 OMRON Angled Barrier Screw M4

E32-T11N 2M

E32 1512M

E32T11N2M.1

OMRON

1 Pcs.

Angled Barrier Screw M4 Fiber optic sensor head, through-beam, M4 hexagonal back, right-angled head, R1 flexible fiber, 2 m cable

Automation > Optical fibre sensor / optical fibre amplifier
E32

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron E32-T11N 2M is an angled barrier fiber optic sensor designed for through-beam object detection in constrained machine footprints. Engineers utilize barrier fiber optics paired with an amplifier to break a light beam, providing highly repeatable presence, edge, and transit monitoring for manufacturing lines.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cylinder, screw-thread
  • Degree of protection (IP) (EF005474): IP67
  • Type of switch function (EF003963): Programmable/configurable
  • Type of electric connection (EF003961): Cable
  • Material fibre optics core (EF004137): Plastic
  • Housing material (EF001596): Zinc
  • Type of light (EF004029): Polarity free red light
  • Material of cable sheath (EF004136): Polyvinyl chloride (PVC)
  • Operation agent-safety class (EF003982): Safety class 0
  • Analogue output -10 V ... +10 V (EF006809): No
  • Analogue output 0 V ... 10 V (EF006807): No
  • Analogue output 0 mA ... 20 mA (EF006808): No
  • With blanking function (EF003968): No
  • Analogue output 4 mA ... 20 mA (EF006810): No
  • With time function (EF003582): No
  • Nominal operating distance (EF004059): 1500 mm

More info

▲
Sensing methodThrough-beamShapeThreadedSizeM4ApplicationObject detectionFeatures90° cable exit, Flexible fiber, Hexagonal backTemperature range-40-70 °CSensing distance3000 mmCable length2 mBending radius1 mmFree cutMaterial corePlasticDegree of protection (IP)IP67Sensing surface orientationRight-angleMaterial sheathPVC
