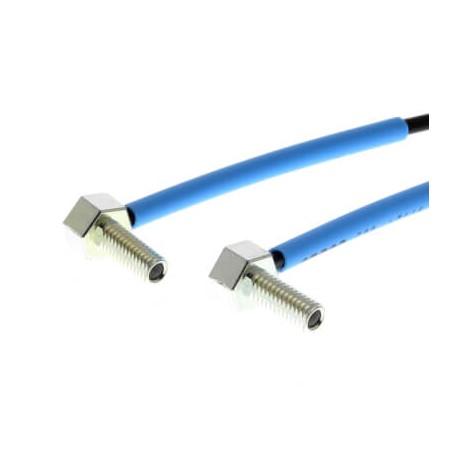

OMRON E32-LT11N 5M E32-LT11N 5M E32 1593F E32LT11N5M OMRON Flexible fiber R2 barrier With integrated lens 15 M4 5m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E32-LT11N 5M E32 1593F E32LT11N5M OMRON Flexible fiber R2 barrier With integrated lens 15 M4 5m

E32-LT11N 5M

E32 1593F

E32LT11N5M

OMRON

1 Pcs.

Flexible fiber R2 barrier With integrated lens 15 M4 5m Fiber optic sensor head, retro-reflective, long distance detection, M4 hexagonal back, right-angled head, integrated lens, R2 flexible fiber, 5 m cabl

Automation > Optical fibre sensor / optical fibre amplifier
E32

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Flexible fiber optic barrier units equipped with integrated lenses enable extended-range optical sensing across large automated zones and material transfer paths. The Omron E32-LT11N 5M integrates into heavy-duty industrial installations requiring long-distance target detection and robust mechanical performance. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Rod
  • Degree of protection (IP) (EF005474): IP50
  • Type of switch function (EF003963): Programmable/configurable
  • Material fibre optics core (EF004137): Plastic
  • Housing material (EF001596): Zinc
  • Type of light (EF004029): Polarity free red light
  • Operation agent-safety class (EF003982): Safety class 0
  • Analogue output -10 V ... +10 V (EF006809): No
  • Analogue output 0 V ... 10 V (EF006807): No
  • Analogue output 0 mA ... 20 mA (EF006808): No
  • With blanking function (EF003968): No
  • Analogue output 4 mA ... 20 mA (EF006810): No
  • With time function (EF003582): No
  • Nominal operating distance (EF004059): 4000 mm
  • Diameter sensor (EF007111): 4 mm
  • Ambient temperature (EF002386): -40 °C

More info

▲
Sensing methodThrough-beamShapeThreadedSizeM4ApplicationLong distance detectionFeatures90° cable exit, Flexible fiber, Hexagonal backTemperature range-40-70 °CSensing distance4000 mmCable length5 mBending radius2 mmFree cutMaterial corePlasticDegree of protection (IP)IP50Sensing surface orientationRight-angleMaterial sheathPolyethylene

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
