View larger
Images are for illustrative purposes only. Please refer to data sheet for details
E32-LR11NP 2M E32 1604E E32LR11NP2M OMRON Fiber R2 mirror Lens integrated 15 M6 Obj. transp Eng. not incl. 2m
E32-LR11NP 2M
E32 1604E
E32LR11NP2M
OMRON
1 Pcs.
Fiber R2 mirror Lens integrated 15 M6 Obj. transp Eng. not incl. 2m
Fiber R2 Mirror Integrated Lens 15º M6 Obj. transp Esp. not incl. 2m

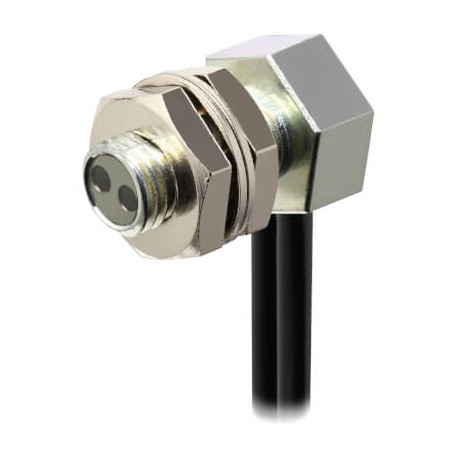

Fiber optic sensor head, retro-reflective, transparent object detection, M6 hexagonal back, right-angled head, integrated lens, R2 flexible fiber, 2 m cable
Automation > Optical fibre sensor / optical fibre amplifier
E32
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Sensing methodRetro-reflectiveShapeThreadedSizeM6ApplicationTransparent object detectionFeatures90° cable exit, Flexible fiber, Hexagonal backTemperature range-40-70 °CSensing distance2020 mmCable length2 mBending radius2 mmFree cutMaterial corePlasticDegree of protection (IP)IP50Sensing surface orientationRight-angleMaterial sheathPolyethylene
| Feature Name | Feature Value |
|---|---|
| Voltage type (EF000187) | Other |
| Construction type housing (EF004008) | Cylinder, screw-thread |
| Laser protection class (EF004027) | Other |
| Degree of protection (IP) (EF005474) | IP50 |
| Setting procedure (EF003994) | Other |
| Indication (EF000350) | Other |
| Type of switch function (EF003963) | Programmable/configurable |
| Type of electric connection (EF003961) | Other |
| Material fibre optics core (EF004137) | Plastic |
| Housing material (EF001596) | Other |
| Type of light (EF004029) | Polarity free red light |
| Material of cable sheath (EF004136) | Other |
| Type of switching output (EF003962) | Other |
| Operation agent-safety class (EF003982) | Safety class 0 |
| Analogue output -10 V ... +10 V (EF006809) | No |
| Analogue output 0 V ... 10 V (EF006807) | No |
| Analogue output 0 mA ... 20 mA (EF006808) | No |
| With blanking function (EF003968) | No |
| Analogue output 4 mA ... 20 mA (EF006810) | No |
| With time function (EF003582) | No |
| Nominal operating distance (EF004059) | 1800 mm |
| Number of semiconductor outputs with signalling function (EF003945) | 0 |
| Diameter sensor (EF007111) | 6 mm |
| Number of contact energized outputs with signalling function (EF003946) | 0 |
| Ambient temperature (EF002386) | -40 °C |
