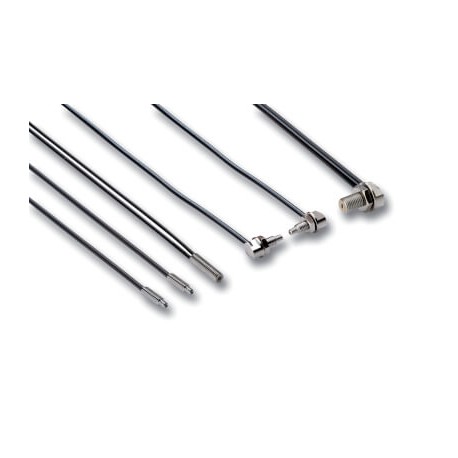

E32-LD11R 5M E32 1528F E32LD11R5M OMRON Flexible fiber R1 reflex With integrated lens 15 M4 x0,7 5m
E32-LD11R 5M
E32 1528F
E32LD11R5M
OMRON
1 Pcs.
Automation > Optical fibre sensor / optical fibre amplifier
E32
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A flexible Omron E32-LD11R 5M reflex fiber optic sensor is employed in automated manufacturing plants to monitor production processes and register object movement reliably. These reflex optical units combine built-in lenses with rugged sheathing to maintain accurate light transmission in demanding environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- M3: 1350
- dia 2 mm: 850
- M4: 260
- Permissible bending radius: R25
- Cut to length: Yes
- Ambient temperature: -40°C to 70°C
- Material: Head
- Fiber: PMMA
- Sheath: Polyethylene coating
- Degree of protection: IP67
- Permissible bending radius: R25
- Cut to length: Yes
- Ambient temperature: -40°C to 70°C
- Material: Head
- Fiber: PMMA
- Sheath: Polyethylene coating
More info
▲Longer distance fiber sensor heads
With built-in focal lenses the longer distance fiber heads provide enhanced operational stability in dusty environments or long distance applications
- Sensing distance up to 20 m
- Built-in focal lens
- Sizes from dia 2mm to M14
Enhanced sensing distance

Light emission of conventional fibers.

With built-in focal lenses, longer sensing distances can be achieved up to 5 times longer compared to conventional sensors.
Sensing distance (in mm)1 | |||||||
|---|---|---|---|---|---|---|---|
