E32-LD11N 5M E32 1596M E32LD11N5M OMRON Flexible fiber R2 slr With integrated lens 15 M6 5m
E32-LD11N 5M
E32 1596M
E32LD11N5M
OMRON
1 Pcs.
Automation > Optical fibre sensor / optical fibre amplifier
E32
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

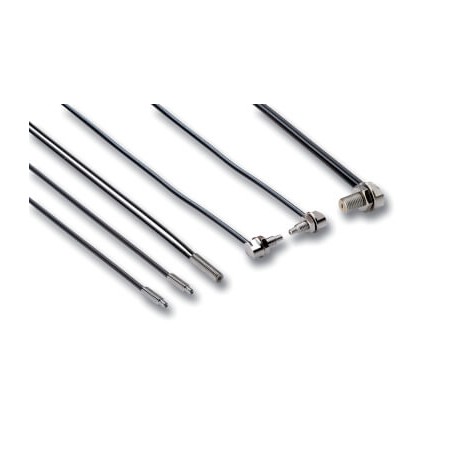

Functioning as an advanced optical detection element, the Omron E32-LD11N 5M flexible fiber r2 slr With integrated lens 15 M6 5m provides reliable object sensing in complex factory environments. Flexible fiber heads paired with integrated lenses focus light beams tightly to detect small parts or monitor precise movement in automated systems.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- M3: 1350
- dia 2 mm: 850
- M4: 260
- Permissible bending radius: R25
- Cut to length: Yes
- Ambient temperature: -40°C to 70°C
- Material: Head
- Fiber: PMMA
- Sheath: Polyethylene coating
- Degree of protection: IP67
- Permissible bending radius: R25
- Cut to length: Yes
- Ambient temperature: -40°C to 70°C
- Material: Head
- Fiber: PMMA
- Sheath: Polyethylene coating
More info
▲Longer distance fiber sensor heads
With built-in focal lenses the longer distance fiber heads provide enhanced operational stability in dusty environments or long distance applications
- Sensing distance up to 20 m
- Built-in focal lens
- Sizes from dia 2mm to M14
Enhanced sensing distance

Light emission of conventional fibers.

With built-in focal lenses, longer sensing distances can be achieved up to 5 times longer compared to conventional sensors.
Sensing distance (in mm)1 | |||||||
|---|---|---|---|---|---|---|---|
