OMRON E32-LD11N 2M E32-LD11N 2M E32 1595B E32LD11N2M OMRON Flexible fiber R2 slr With integrated lens 15 M6 2m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E32-LD11N 2M E32 1595B E32LD11N2M OMRON Flexible fiber R2 slr With integrated lens 15 M6 2m

E32-LD11N 2M

E32 1595B

E32LD11N2M

OMRON

1 Pcs.

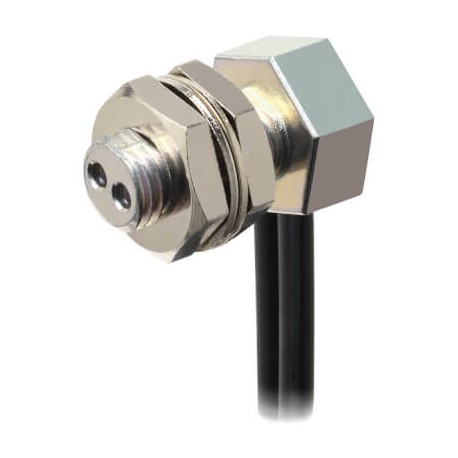

Flexible fiber R2 slr With integrated lens 15 M6 2m Fiber optic sensor head, diffuse, M6 hexagonal back, right-angled head, integrated lens, R2 flexible fiber, 2 m cable

Automation > Optical fibre sensor / optical fibre amplifier
E32

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron E32-LD11N 2M flexible fiber optic unit utilizes a robust bending radius and built-in lens to facilitate reliable object detection in restricted industrial layouts. Production facilities depend on these flexible sensor elements coupled with amplifiers to monitor material flow and confirm part placement on dynamic machinery.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cylinder, screw-thread
  • Degree of protection (IP) (EF005474): IP50
  • Type of switch function (EF003963): Programmable/configurable
  • Material fibre optics core (EF004137): Plastic
  • Type of light (EF004029): Polarity free red light
  • Operation agent-safety class (EF003982): Safety class 0
  • Analogue output -10 V ... +10 V (EF006809): No
  • Analogue output 0 V ... 10 V (EF006807): No
  • Analogue output 0 mA ... 20 mA (EF006808): No
  • With blanking function (EF003968): No
  • Analogue output 4 mA ... 20 mA (EF006810): No
  • With time function (EF003582): No
  • Nominal operating distance (EF004059): 520 mm
  • Diameter sensor (EF007111): 6 mm
  • Ambient temperature (EF002386): -40 °C

More info

▲
Sensing methodDiffuse reflectiveShapeThreadedSizeM6ApplicationObject detectionFeatures90° cable exit, Flexible fiber, Hexagonal backTemperature range-40-70 °CSensing distance1260 mmCable length2 mBending radius2 mmFree cutMaterial corePlasticDegree of protection (IP)IP50Sensing surface orientationRight-angleMaterial sheathPolyethylene

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
