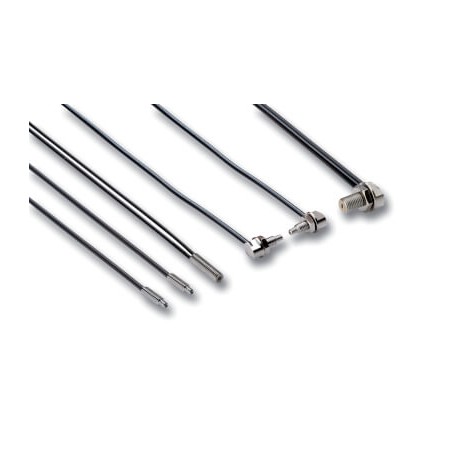

E32-D21N 10M E32 1603G E32D21N10M OMRON Flexible fiber R2 reflex 60º M4 10m
E32-D21N 10M
E32 1603G
E32D21N10M
OMRON
1 Pcs.
Automation > Optical fibre sensor / optical fibre amplifier
E32
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Flexible fiber R2 reflex 60º M4 10m provides robust diffuse-reflective sensing capabilities in automated assembly lines where tight routing radii and extended cable lengths are required. These threaded fiber heads enable straightforward mechanical mounting while withstanding continuous movement.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- M3: 450
- M4: 160
- M3: 160
- Permissible bending radius: R25
- Cut to length: Yes
- Ambient temperature: -40°C to 70°C
- Material: Head
- Fiber: PMMA
- Sheath: Polyethylene coating
- Degree of protection: IEC 60529 IP67
More info
▲Standard cylindrical fiber sensor heads
The standard cylindrical fiber optic sensing heads provide reliable object detection, easy installation and long sensor lifetime for all general applications.
- High-flex fibers and 90° cable exit for cable breakage prevention
- Models with hexagonal back for simplified one-nut mounting
- Sizes M3 to M6
Hi-flex fibers

Hi-flex multicore fibers for flexibility in installation without fiber breakage.
Simple mounting

Models with hexagonal back for simple one-nut mounting.
Fiber breakage prevention

Cable exit shifted by 90° for preventing fiber breakage.
Sensing distance (in mm)1 | |||||||
|---|---|---|---|---|---|---|---|
