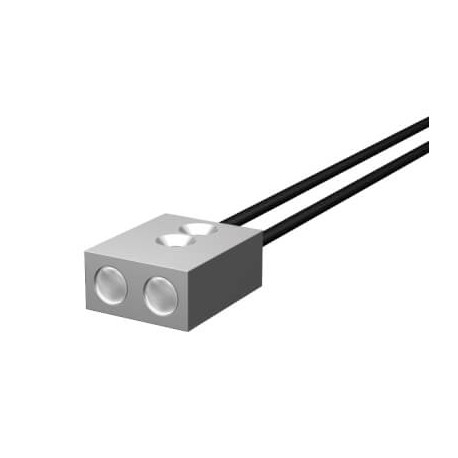

OMRON E32-D16 2M E32-D16 2M E32 1543M 392251 OMRON Long distance reflex with built-in lens. Rectangular View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E32-D16 2M E32 1543M 392251 OMRON Long distance reflex with built-in lens. Rectangular

E32-D16 2M

E32 1543M

E32D162M,1

OMRON

1 Pcs.

Reflex long-distance with lens built. Rectangular Fiber optic sensor head, diffuse, long distance detection, square, top-view, R4 bend resistant fiber, 2 m cable

Automation > Optical fibre sensor / optical fibre amplifier
E32

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron E32-D16 2M rectangular long-distance reflex fiber optic sensor is used across manufacturing floors to detect objects reliably over extended operating ranges. Industrial facilities rely on these optical sensing components to monitor production flows and inspect targets in automated processing cells. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Sensing method: Diffuse reflective
  • Shape: Square
  • Product Width (unpacked): 22 mm
  • Product Depth (unpacked): 9 mm
  • Product Height (unpacked): 17.5 mm
  • Application: Long distance detection
  • Features: Bend resistant
  • Temperature range: -40-70 °C
  • Sensing distance: 4000 mm
  • Cable length: 2 m
  • Bending radius: 4 mm
  • Material core: Plastic
  • Degree of protection (IP): IP67
  • Sensing surface orientation: Top-view
  • Material sheath: PVC
  • Degree of protection (IP) (EF005474): IP67

More info

▲

Specifications

Sensing methodDiffuse reflective
ShapeSquare
Product Width (unpacked)22 mm
Product Depth (unpacked)9 mm
Product Height (unpacked)17.5 mm
ApplicationLong distance detection
FeaturesBend resistant
Temperature range-40-70 °C
Sensing distance4000 mm
Cable length2 m
Bending radius4 mm
Free cut
Material corePlastic
Degree of protection (IP)IP67
Sensing surface orientationTop-view
Material sheathPVC

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
