OMRON E32-A08H2 3M E32-A08H2 3M E32 1106M 277589 OMRON Diffuse Reflex Dist Limited Obj Transparent Flat 300º R25 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E32-A08H2 3M E32 1106M 277589 OMRON Diffuse Reflex Dist Limited Obj Transparent Flat 300º R25

E32-A08H2 3M

E32 1106M

E32A08H23M

OMRON

1 Pcs.

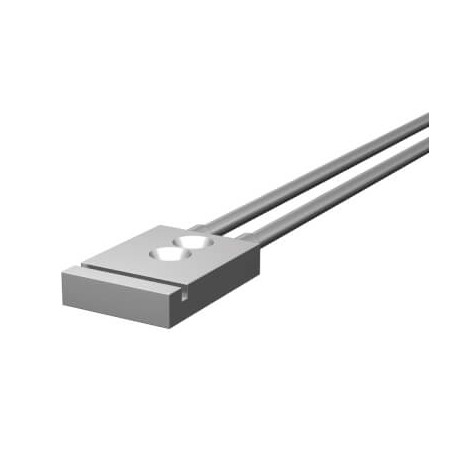

Reflex diffuse Dist limited Obj-transparent Plane 300th R25 Diffuse Reflex Dist Limited Obj Transparent Plane 300o R25 Fiber optic sensor head, limited reflective, transparent object detection, square, flat-view, R25 heat resistant fiber, up to 300ºC, 3 m cable

Automation > Optical fibre sensor / optical fibre amplifier
E32

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed by Omron as part number E32-A08H2 3M, this diffuse reflex limited obj transparent flat 300º r25 functions as a photoelectric fiber optic head for precise object detection in industrial automation settings. Diffuse reflection sensors are typically employed in manufacturing and packaging lines to detect the presence, position, or absence of items without requiring physical contact.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Sensing method: Limited reflective
  • Shape: Square
  • Application: Transparent object detection
  • Features: Heat-resistant
  • Temperature range: -40-300 °C
  • Sensing distance: 20 mm
  • Cable length: 3 m
  • Bending radius: 25 mm
  • Material core: Glass
  • Degree of protection (IP): IP30
  • Sensing surface orientation: Flat-view
  • Material sheath: SUS
  • Degree of protection (IP) (EF005474): IP30
  • Ambient temperature (EF002386): -40 °C

More info

▲

Specifications

Sensing methodLimited reflective
ShapeSquare
ApplicationTransparent object detection
FeaturesHeat-resistant
Temperature range-40-300 °C
Sensing distance20 mm
Cable length3 m
Bending radius25 mm
Free cut
Material coreGlass
Degree of protection (IP)IP30
Sensing surface orientationFlat-view
Material sheathSUS

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
