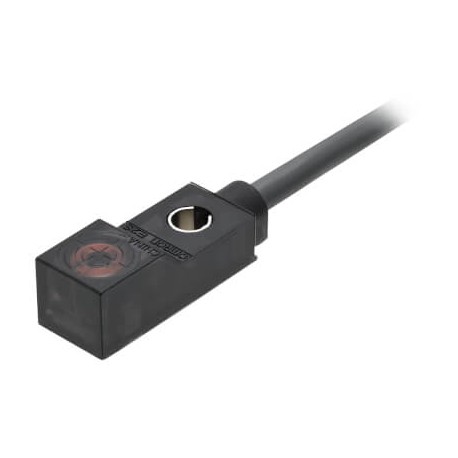

OMRON E2S-W22 1M E2S-W22 1M E2S 7046G E2SW221MOMS OMRON Miniature Square Laterall 2h NoEnr 2.5 mm NC Cable 1m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2S-W22 1M E2S 7046G E2SW221MOMS OMRON Miniature Square Laterall 2h NoEnr 2.5 mm NC Cable 1m

E2S-W22 1M

E2S 7046G

E2SW221MOMS

OMRON

10 Pcs.

Miniature Square Laterall 2h NoEnr 2.5 mm NC Cable 1m Miniature rectangular Inductive, front face sensing, unshielded, 2.5mm, 2 wire DC, NC, 1M cable

Automation > Inductive proximity switch
Others

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron E2S-W22 1M miniature square laterall 2h noenr 2.5 mm NC cable 1m functions as a compact electronic sensor designed to track metallic targets in confined automation spaces. Such miniature position detectors are commonly mounted inside mechanical devices and tight tooling enclosures where standard cylindrical sensors cannot fit. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cuboid
  • Mechanical mounting condition for sensor (EF004041): Not flat
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Breaker contact
  • Type of electric connection (EF003961): Cable
  • Housing material (EF001596): Plastic
  • Type of switching output (EF003962): 2-wire
  • Interference resistance to magnetic fields (EF008275): Immune against magnetic DC-field
  • Cascadable (EF000507): No
  • Compression-resistant (EF007106): No
  • Suitable for safety functions (EF001597): No
  • Number of protected contact energized outputs (EF003952): 0
  • Number of protected semiconductor outputs (EF003951): 0
  • Width sensor (EF007094): 8 mm
  • Height of sensor (EF007283): 7.4 mm

More info

▲
Size8 x 8 x 23 mmMounting typeNon-flushSensing distance2.5 mmOutput type2-wireOperation modeNCConnection methodCableMaterial housingPolyacrylateCable specificationsPVCCable length1 mOverall length of sensor23 mmSensing surface orientationTop

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
