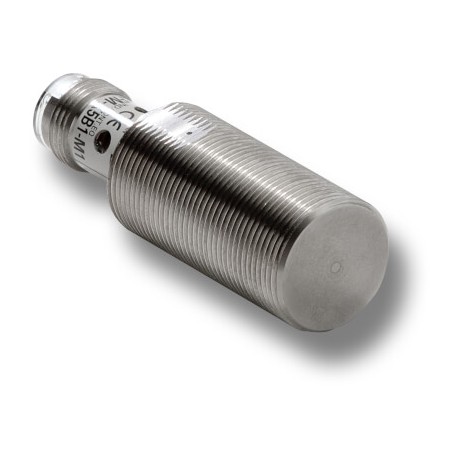

OMRON E2FM-X1R5D1-M1TGJ 0,3M E2FM-X1R5D1-M1TGJ 0,3M E2FM0069M E2FMX1R5D1M1TGJ03M OMRON Inductive extra-strong 2h 1.5 mm M8 Cable 0,3 M + .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2FM-X1R5D1-M1TGJ 0,3M E2FM0069M E2FMX1R5D1M1TGJ03M OMRON Inductive extra-strong 2h 1.5 mm M8 Cable 0,3 M + ..

E2FM-X1R5D1-M1TGJ 0,3M

E2FM0069M

E2FMX1R5D1M1TGJ03M

OMRON

1 Pcs.

Inductive extra-strong 2h 1.5 mm M8 Cable 0,3 M + M12 SmartClick Proximity sensor, inductive, stainless steel face & body, long body, M8, shielded, 1.5 mm, DC, 2-wire, NO, M12 with 0.3 m pigtail

Automation > Inductive proximity switch
Others

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An inductive proximity sensor, the Omron E2FM-X1R5D1-M1TGJ 0,3M provides robust non-contact position sensing for heavy-duty industrial applications and automated production lines.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Mechanical mounting condition for sensor (EF004041): Concise
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Normally open contact
  • Type of electric connection (EF003961): Cable with connector
  • Housing material (EF001596): Metal
  • Type of switching output (EF003962): 2-wire
  • Cascadable (EF000507): No
  • Compression-resistant (EF007106): No
  • Suitable for safety functions (EF001597): No
  • Number of protected contact energized outputs (EF003952): 0
  • Number of protected semiconductor outputs (EF003951): 0
  • Diameter sensor (EF007111): 8 mm
  • Switching distance (EF003647): 1.5 mm
  • Length of sensor (EF007334): 49 mm

More info

▲
Features

Inductive proximity sensor in cylindrical full metal housing (case + sensing face)

The high durability stainless steel sensing face provides more than 20 times longer protection against mechanical damage than conventional sensors. The high mineral oil and coolant resistance and the immunity against small metal chips on the surface make this sensor ideal for metal cutting or drilling applications.

  • Full body stainless steel housing for highest mechanical protection
  • Low frequency modulation for metal chip immunity
  • Flame retardant cable for high protection against welding spatter damage (pigtail models)

Full metal face

metal surface prod

E2FM extra strong sensing face

Tested durability

Tested durability with more than 20 times longer lifetime compared to conventional metal face inductive sensors.

brushing and hammering320x230 prod

Metal chip immune

metal chip immune prod

No interference by small metal chips on sensing surface

Welding spatter immune

welding spatter immune prod

Cable resistant to welding spatter


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
