OMRON E2E-X10MF1 2M E2E-X10MF1 2M 238378 E2EX10MF12MOMS OMRON 3h cc NoEnr 10mm M18 PNP NA Cable 2m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2E-X10MF1 2M 238378 E2EX10MF12MOMS OMRON 3h cc NoEnr 10mm M18 PNP NA Cable 2m

E2E-X10MF1 2M

238378

E2EX10MF12MOMS

OMRON

1 Pcs.

3h cc NoEnr 10mm M18 PNP NA Cable 2m

Automation > Inductive proximity switch
E2E

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Features

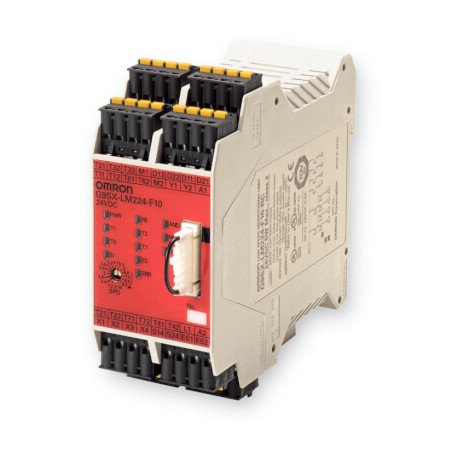

Limited speed monitoring unit

Safe limited speed monitoring unit for complete support of maintenance mode in machinery.

  • Preset of limited speed frequency by using integrated preset switches
  • Easy integration in G9SX systems by using the logical AND connection
  • Clear LED diagnosis of all in- and outputs
  • Applicable up to Category 3 acc. EN 954-1

Ordering information

Proximity sensors

Classification

Order code

Proximity sensor

Shielded

M8

E2E-X1R5F1

M12

E2E-X2F1

M18

E2E-X5F1

Unshielded

M8

E2E-X2MF1

M12

E2E-X5MF1

M18

E2E-X10MF1

Ratings of limited speed monitoring unit

Safety outputs1

Auxiliary
outputs2

Logical AND
connection input

Rated
voltage

Sensor power supply terminals

Terminal block type

Order code

Instantaneous

4 (Semi-conductors)

4 (Semi-conductors)

1

24 VDC

2

Screw terminals

G9SX-LM224-F10-RT

Spring-cage terminals

G9SX-LM224-F10-RC

Specifications

Ratings of limited speed monitoring unit

Power input

Item

G9SX-LM224-F10-_

Rated supply voltage

24 VDC

Inputs

Item

G9SX-LM224-F10-_

Safety input

Operating voltage: 20.4 VDC to 26.4 VDC

Internal impedance: approx. 2.8 kΩ

Feedback/reset input

Mode selector input

Rotation detection input

Operating voltage 20.4 VDC to 26.4 VDC
Internal impedance: approx. 2.8 kΩ

Input frequency: 1 kHz max.

Outputs

Item

G9SX-LM224-F10-_

Safety solid state output

P channel MOS FET transistor output

Load current: 0.8 A DC max.

Safety speed detection output

P channel MOS FET transistor output

Load current: 0.3 A DC max.

External indicator output

PNP transistor output

Load current: 100 mA max.

Application example

Safe limited speed


1.P channel MOS FET output

2.PNP transistor output
