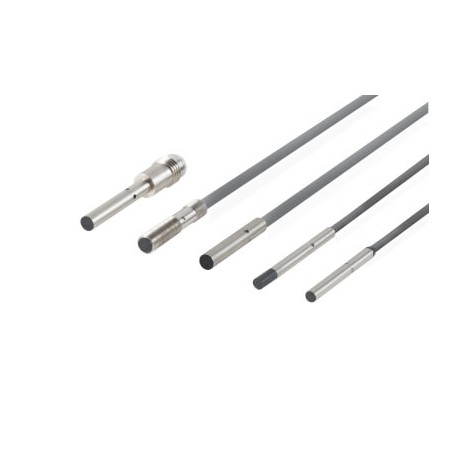

OMRON E2E-C04S12-WC-B2 5M E2E-C04S12-WC-B2 5M E2E 8199M E2EC04S12WCB25MOMS OMRON Inductive day.4mm Flush-1.2 mm 3h-PNP NC-Cable 5m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2E-C04S12-WC-B2 5M E2E 8199M E2EC04S12WCB25MOMS OMRON Inductive day.4mm Flush-1.2 mm 3h-PNP NC-Cable 5m

E2E-C04S12-WC-B2 5M

E2E 8199M

E2EC04S12WCB25MOMS

OMRON

1 Pcs.

Inductive day.4mm Flush-1.2 mm 3h-PNP NC-Cable 5m Inductive Dia.4mm Flush 1.2mm 3h PNP NC Cable 5m

Automation > Inductive proximity switch
E2E

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Features

Small diameter proximity sensors for high precision detection

Omron's latest inductive technology has now been applied to a new range of small diameter inductive sensors. The new µPROX E2E provides precision detection and allows installation in even the most confined spaces. The portfolio has been extended to include non-shielded types and versions with pig-tail connector leads.

  • Miniature size: 3, 4, 6.5 mm and M4, M5 diameters
  • High frequency of 5 kHz: suitable for high-speed counting
  • All sizes are also available as non-shielded types
  • IP67 water ingress protection
  • Highly visible indicators for easy operation confirmation

Ordering information

Size

Sensing distance

Connection

Output configuration

Order code

Operation mode NO

Operation mode NC

dia 3 mm

¢

0.8 mm

PW

PNP

E2E-C03SR8-WC-B1 2M OMS

E2E-C03SR8-WC-B2 2M OMS

NPN

E2E-C03SR8-WC-C1 2M OMS

E2E-C03SR8-WC-C2 2M OMS

¢

2 mm

PW

PNP

E2E-C03N02-WC-B1 2M OMS

E2E-C03N02-WC-B2 2M OMS

NPN

E2E-C03N02-WC-C1 2M OMS

E2E-C03N02-WC-C2 2M OMS

M4

¢

0.8 mm

PW

PNP

E2E-S04SR8-WC-B1 2M OMS

E2E-S04SR8-WC-B2 2M OMS

NPN

E2E-S04SR8-WC-C1 2M OMS

E2E-S04SR8-WC-C2 2M OMS

¢

2 mm

PW

PNP

E2E-S04N02-WC-B1 2M OMS

E2E-S04N02-WC-B2 2M OMS

NPN

E2E-S04N02-WC-C1 2M OMS

E2E-S04N02-WC-C2 2M OMS

dia 4 mm

¢

1.2 mm

PW

PNP

E2E-C04S12-WC-B1 2M OMS

E2E-C04S12-WC-B2 2M OMS

NPN

E2E-C04S12-WC-C1 2M OMS

E2E-C04S12-WC-C2 2M OMS

¢

3 mm

PW

PNP

E2E-C04N03-WC-B1 2M OMS

E2E-C04N03-WC-B2 2M OMS

NPN

E2E-C04N03-WC-C1 2M OMS

E2E-C04N03-WC-C2 2M OMS

M5

¢

1.2 mm

PW

PNP

E2E-S05S12-WC-B1 2M OMS

E2E-S05S12-WC-B2 2M OMS

NPN

E2E-S05S12-WC-C1 2M OMS

E2E-S05S12-WC-C2 2M OMS

¢

3 mm

PW

PNP

E2E-S05N03-WC-B1 2M OMS

E2E-S05N03-WC-B2 2M OMS

NPN

E2E-S05N03-WC-C1 2M OMS

E2E-S05N03-WC-C2 2M OMS

dia 6.5 mm

¢

2 mm

PW

PNP

E2E-C06S02-WC-B1 2M OMS

E2E-C06S02-WC-B2 2M OMS

NPN

E2E-C06S02-WC-C1 2M OMS

E2E-C06S02-WC-C2 2M OMS

M8(3P)

PNP

E2E-C06S02-MC-B1 OMS

E2E-C06S02-MC-B2 OMS

NPN

E2E-C06S02-MC-C1 OMS

E2E-C06S02-MC-C2 OMS

¢

4 mm

PW

PNP

E2E-C06N04-WC-B1 2M OMS

E2E-C06N04-WC-B2 2M OMS

NPN

E2E-C06N04-WC-C1 2M OMS

E2E-C06N04-WC-C2 2M OMS

M8(3P)

PNP

E2E-C06N04-MC-B1 OMS

E2E-C06N04-MC-B2 OMS

NPN

E2E-C06N04-MC-C1 OMS

E2E-C06N04-MC-C2 OMS

Specifications

Item

dia. 3/M4

dia. 4/M5

dia. 6.5

E2E-C03S/-S04S

E2E-C03N/-S04N

E2E-C04S/-S05S

E2E-C04N/-S05N

E2E-C06S

E2E-C06N

Sensing distance

0.8 mm±10%

2.0 mm±10%

1.2 mm±10%

3.0 mm±10%

2.0 mm±10%

4 mm±10.%

Setting distance

0 to 0.56 mm

0 to 1.4 mm

0 to 0.84 mm

0 to 2.1 mm

0 to 1.4 mm

0 to 2.8 mm

Response frequency

5 kHz

3 kHz

4 kHz

2 kHz

3 kHz

4 kHz

Supply voltage

10 to 30 VDC

Current consumption

≤10 mA

Max. control output

≤50 mA

≤100 mA

≤200 mA

Residual output voltage

≤2 V

Ambient temperature range

-25 to 70°C

Ambient temperature fluctuation

≤15%

Degree of protection

IEC 60529 IP67

Material

Case

Stainless steel (SUS303)

Sensing surface

Heat-resistant ABS
