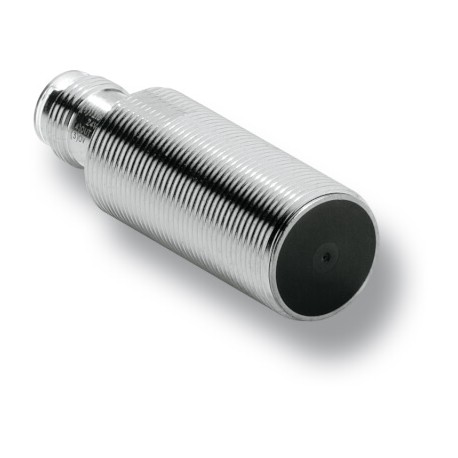

OMRON E2A-S08KS02-WP-B1 10M E2A-S08KS02-WP-B1 10M E2A 7323C E2AS08KS02WPB110MOMS OMRON Stainless steel Short-3h Enr 2mm M8 PNP NA Cable .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2A-S08KS02-WP-B1 10M E2A 7323C E2AS08KS02WPB110MOMS OMRON Stainless steel Short-3h Enr 2mm M8 PNP NA Cable ..

E2A-S08KS02-WP-B1 10M

E2A 7323C

E2AS08KS02WPB110MOMS

OMRON

1 Pcs.

Stainless steel Short-3h Enr 2mm M8 PNP NA Cable 10m Proximity sensor, inductive, stainless steel, short body, M8, shielded, 2 mm, DC, 3-wire, PNP-NO, 10 m prewired

Automation > Inductive proximity switch
E2A

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron E2A-S08KS02-WP-B1 10M is an inductive proximity sensor engineered to sense metallic objects without physical contact in high-speed automated environments. Engineers install these devices in material handling systems and robotic assembly stations to monitor component travel limits and verify mechanical positioning.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Normally open contact
  • Type of electric connection (EF003961): Cable
  • Type of switching output (EF003962): PNP
  • Cascadable (EF000507): Yes
  • Compression-resistant (EF007106): No
  • Suitable for safety functions (EF001597): No
  • Number of protected contact energized outputs (EF003952): 0
  • Number of protected semiconductor outputs (EF003951): 0
  • Diameter sensor (EF007111): 8 mm
  • Switching distance (EF003647): 2 mm
  • Switching frequency (EF003587): 1500 Hz
  • Supply voltage (EF004127): 10 V
  • Rated control supply voltage DC (EF003980): 12 V
