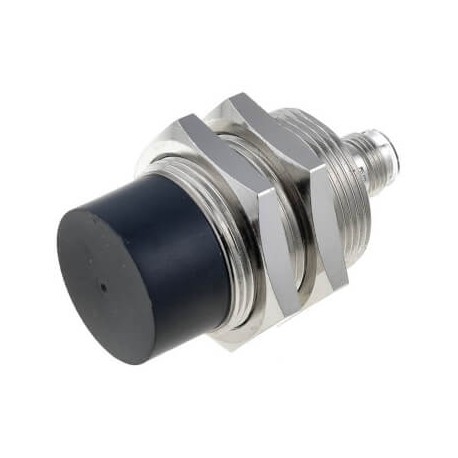

OMRON E2A-M30KN20-M1-B2 E2A-M30KN20-M1-B2 150099 E2AM30KN20M1B2 OMRON Short-3h NoEnr 20mm M30 PNP NC Connector M12 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2A-M30KN20-M1-B2 150099 E2AM30KN20M1B2 OMRON Short-3h NoEnr 20mm M30 PNP NC Connector M12

E2A-M30KN20-M1-B2

150099

E2AM30KN20M1B2

OMRON

1 Pcs.

Short-3h NoEnr 20mm M30 PNP NC Connector M12 Proximity sensor, inductive, brass-nickel, short body, M30, non-shielded, 20 mm, DC, 3-wire, PNP-NC, M12 plug-in

Automation > Inductive proximity switch
E2A

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for robust automation tasks, the Omron E2A-M30KN20-M1-B2 Short-3h NoEnr 20mm M30 PNP NC Connector M12 functions as an inductive proximity sensor used to detect metal components without mechanical wear. Common applications include automated assembly lines, material handling systems, and machine tool indexing where reliable position feedback is essential. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Size: M30
  • Mounting type: Non-flush
  • Sensing distance: 20 mm
  • Output type: PNP
  • Operation mode: NC
  • Connection method: Connector M12
  • Material housing: Brass, nickel plated
  • Overall length: 58 mm
  • Thread length: 29 mm

More info

▲

Specifications

SizeM30
Mounting typeNon-flush
Sensing distance20 mm
Output typePNP
Operation modeNC
Connection methodConnector M12
Material housingBrass, nickel plated
Cable specifications-
Overall length58 mm
Thread length29 mm
