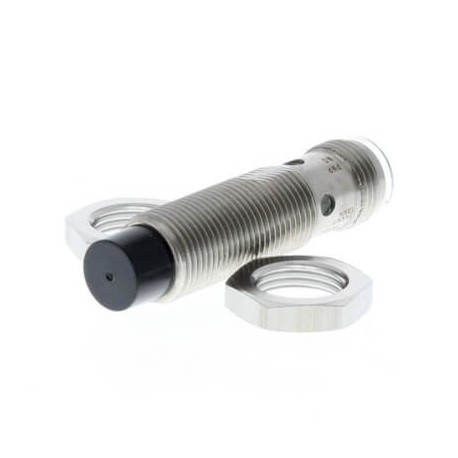

OMRON E2A-M12KN08-M1-B1-4 E2A-M12KN08-M1-B1-4 E2A 7386A E2AM12KN08M1B14OMS OMRON Short-3h NoEnr 8mm M12 PNP NA M12 Connector Pin gold View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2A-M12KN08-M1-B1-4 E2A 7386A E2AM12KN08M1B14OMS OMRON Short-3h NoEnr 8mm M12 PNP NA M12 Connector Pin gold

E2A-M12KN08-M1-B1-4

E2A 7386A

E2AM12KN08M1B14OMS

OMRON

1 Pcs.

Short-3h NoEnr 8mm M12 PNP NA M12 Connector Pin gold Proximity sensor, inductive, brass-nickel, short body, M12, non-shielded, 8mm, DC, 3-wire, PNP-NO, M12 connector, gold-plated pins

Automation > Inductive proximity switch
E2A

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron E2A-M12KN08-M1-B1-4 is an inductive proximity sensor engineered for robust object detection in general industrial environments. Automated machinery relies on these threaded cylindrical sensors to provide continuous, maintenance-free position feedback and cycle monitoring. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Mechanical mounting condition for sensor (EF004041): Concise
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Normally open contact
  • Type of electric connection (EF003961): Connector M12
  • Housing material (EF001596): Metal
  • Type of switching output (EF003962): PNP
  • Cascadable (EF000507): Yes
  • Compression-resistant (EF007106): No
  • Suitable for safety functions (EF001597): No
  • Number of protected contact energized outputs (EF003952): 0
  • Number of protected semiconductor outputs (EF003951): 0
  • Diameter sensor (EF007111): 12 mm
  • Switching distance (EF003647): 8 mm

More info

▲
SizeM12Mounting typeNon-flushSensing distance8 mmOutput typePNPOperation modeNOConnection methodConnector M12Material housingBrass, nickel platedCable specifications-Overall length of sensor48 mmThread length27 mmFeaturesGold plated connector pinsDegree of protection (IP)IP67

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
