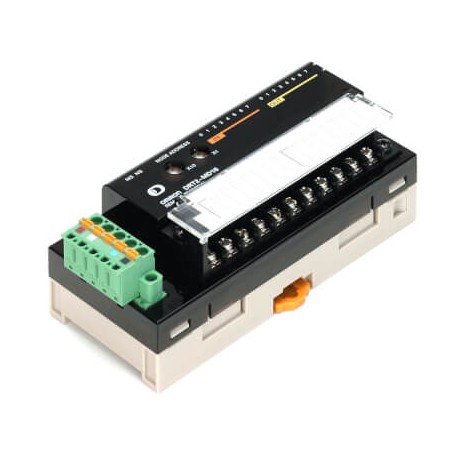

OMRON DRT2-MD16-1 DRT2-MD16-1 DRT27040M DRT2MD161,1 OMRON Module 8/8 PNP I/O View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DRT2-MD16-1 DRT27040M DRT2MD161,1 OMRON Module 8/8 PNP I/O

DRT2-MD16-1

DRT27040M

DRT2MD161.1

OMRON

1 Pcs.

Module 8/8 PNP I/O DeviceNet digital I/O unit, 8 x inputs and 8 x outputs 0.5 A, 24 VDC, PNP, screw terminal block

Automation > Fieldbus, decentr. periphery - digital I/O module
DRT (Devicenet)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for network-based industrial automation, the Omron DRT2-MD16-1 Module 8/8 PNP I/O coordinates discrete field signals across a standardized bus infrastructure. DeviceNet slave modules facilitate decentralized signal collection and control distribution, minimizing wiring complexity in extensive installations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Communication port(s): DeviceNet Slave
  • Type of module: Digital I/O
  • I/O connection type: Screw
  • Connection method: 1-wire
  • Number of digital inputs: 8
  • Digital input type: PNP
  • Permitted voltage at input: 0-26.4 V
  • Number of digital outputs: 8
  • Digital output type: PNP
  • Permitted voltage at output: 0-26.4 V
  • Output current: 0.5 A
  • Degree of protection (IP): IP20
  • Height: 50 mm
  • Width: 115 mm
  • Depth: 49.6 mm
  • Weight: 187 g

More info

▲

Specifications

Communication port(s)DeviceNet Slave
Type of moduleDigital I/O
I/O connection typeScrew
Connection method1-wire
Number of digital inputs8
Digital input typePNP
Permitted voltage at input0-26.4 V
Number of digital outputs8
Digital output typePNP
Permitted voltage at output0-26.4 V
Output current0.5 A
Short-circuit protected outputs
I/O systemNone
Degree of protection (IP)IP20
Height50 mm
Width115 mm
Depth49.6 mm
Weight187 g

Accessories

DCN1-1CDeviceNet T-branch tap for 1 branch line, 3 connectors with screws, side cable entry
DCN1-1NCDeviceNet T-Branch tap for 1 branch line, 3 parallel clamp connectors, top cable entry
DCN1-1PDeviceNet power supply tap with 2 connectors, standard terminating resistor, and fuse
DCN1-3CDeviceNet T-branch tap for 3 branch lines, 5 connectors with screws, side cable entry
DCN1-3NCDeviceNet T-Branch tap for 3 branch lines, 5 parallel clamp connectors, top cable entry
DRS1-TCompoNet/DeviceNet termination terminal block
XW4B-05C4-TF-DDeviceNet multi-branching connector, parallel with screws, connector insertion and wiring in same direction.
XW4G-05C4-TF-DDeviceNet connector, multi-branch parallel screwless, connector insertion and wiring in same direction.
