DCA1-5CNC5H1 DCA10003G 143326 OMRON IP67 0.5m Cable Male Connector & Dropouts
DCA1-5CNC5H1
DCA10003G
DCA15CNC5H1
OMRON
1 Pcs.
Automation > Telecommunications patch cord
Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

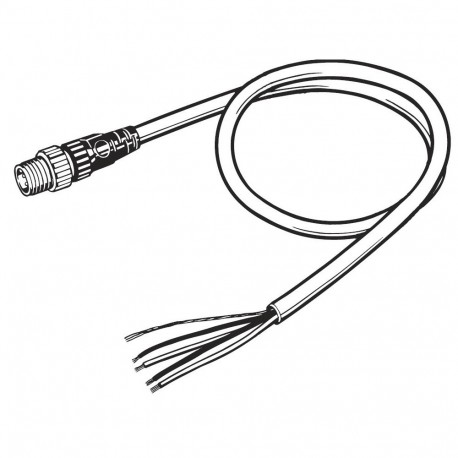

Omron DCA1-5CNC5H1 is a short IP67 cable equipped with a male connector and dropouts, intended for branch connections and sensor integration in industrial networks. Modular network components like this optimize topology layout and simplify expansion in automated factory applications. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- 4-point PNP input unit: 24 V, 6 mA
- 8-point PNP input unit: 24 V, 6 mA
- 8-point PNP input unit: 24 V, 11 mA, with power short-circuit and sensor disconnection detection
- 16-point PNP input unit: 24 V, 6 mA, 2 inputs per M12 connector
- 4-point PNP output unit: 24 V, 0.5 A per point
- 8-point PNP output unit: 24 V, 0.5 A per point
- 8-point PNP output unit: 24 V, 1.5 A per point (8 A total), with short-circuit protection + indication
- 16-point PNP output unit: 24 V, 0.5 A per point, 2 points per M12 connector
- 8-point input + 8-point PNP output unit: 24 V, 6 mA input, 0.5 A output per point, 2 points per M12 connector
- DeviceNet thin cable: with one M12 socket connector (female), 1 m
- DeviceNet thin cable: with one M12 socket connector (female), 2 m
- DeviceNet thin cable: with one M12 socket connector (female), 5 m
- DeviceNet thin cable: with one M12 socket connector (female) and one M12 plug connector (male), 1 m
- DeviceNet thin cable: with one M12 socket connector (female) and one M12 plug connector (male), 2 m
- DeviceNet thin cable: with one M12 socket connector (female) and one M12 plug connector (male), 5 m
- DeviceNet T-connector for thin cable: with two M12 socket connectors (female) + one M12 plug connector (male)
More info
▲- IP67 protection, DRT2 versions are also oil- and welding-spatter proof
- Internal circuits powered by DeviceNet; fewer connections means less installation errors
- Smart Slave functions for diagnostics and preventive maintenance
- Indication of broken wire and short-circuit in I/O signals
- M12 connectors for fast installation
Specifications & ordering info
Ordering information
Note: To order models with NPN (sinking) outputs and corresponding inputs (+V common), omit the “-1” from the model code.
