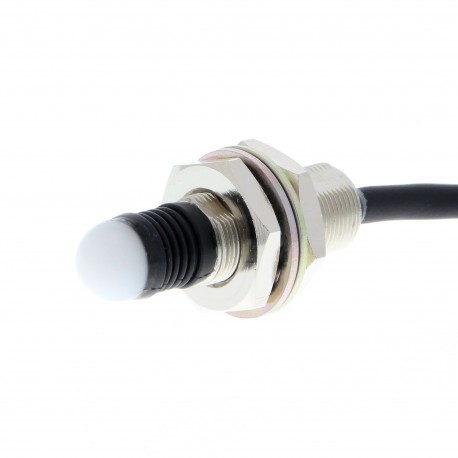

OMRON D5B-8011 D5B-8011 D5B 8011G D5B8011 OMRON High sensitivity Stroke hemispheric M8 Cable 1m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D5B-8011 D5B 8011G D5B8011 OMRON High sensitivity Stroke hemispheric M8 Cable 1m

D5B-8011

D5B 8011G

D5B8011

OMRON

1 Pcs.

High sensitivity Stroke hemispheric M8 Cable 1m High sensitivity Hemispheric embolo M8 Cable 1m Tactile Limit switch, M8 body, hemispheric actuator, 1 m prewired

Automation > End switch
Other

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron D5B-8011 high-sensitivity position switch incorporates a hemispheric stroke plunger and a factory-preassembled cable for reliable outdoor or wet environment tracking. Precision touch switches are commonly employed in jigs, positioning fixtures, and automated assembly stations where exact dimensional detection is required. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP67
  • Type of control element (EF006976): Plunger
  • Type of electric connection (EF003961): With cable preassembled
  • Switching function (EF000189): Slow-action switch
  • Housing material (EF001596): Metal
  • Switching function latching (EF007447): No
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): No
  • Forced opening (EF006694): No
  • Output electronic (EF006987): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 0
  • Number of safety auxiliary contacts (EF006940): 0
  • Rated operation current Ie at DC-13, 24 V (EF007087): 0.03 A
  • Number of contacts as normally closed contact (EF008255): 1
  • Diameter sensor (EF007111): 8 mm

More info

▲
  • High-sensitivity mechanical touch switch
  • Detects objects in multiple directions and operates with slight force
  • Movement differential of 0.01mm assures high accuracy of detection
  • Gold-plated contacts capable of switching micro current/voltage load
  • Highly resistant to dust, fine particles, water or oil splashes (IP67)
