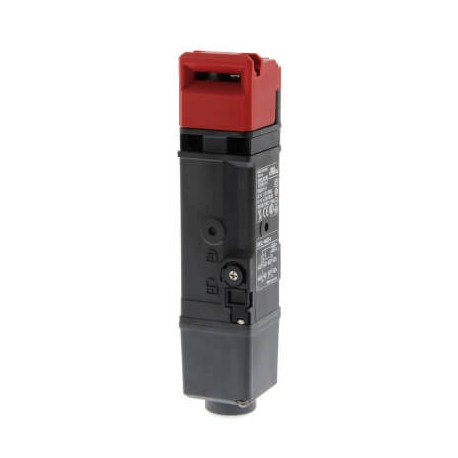

OMRON D4SL-N4RFA-D D4SL-N4RFA-D D4SL2281C D4SLN4RFAD OMRON Mechanical locking 3nc contact forms + 3nc contact forms IP67 M20 LE.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4SL-N4RFA-D D4SL2281C D4SLN4RFAD OMRON Mechanical locking 3nc contact forms + 3nc contact forms IP67 M20 LE..

D4SL-N4RFA-D

D4SL2281C

D4SLN4RFAD

OMRON

1 Pcs.

Mechanical locking 3nc contact forms + 3nc contact forms IP67 M20 LED Plastic Terminals Guard lock safety-door switch, D4SL-N, M20, 3NC + 3NC, head: resin, Mechanical lock/24VDC solenoid release, LED indicator

Automation > Position switch with guard locking
D4DL/DS/DH/DR/GL/NL/NH/NS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron D4SL-N4RFA-D is a mechanical locking safety door switch built to monitor barrier status and lock machine guards during active hazard cycles. Such interlock switches provide reliable feedback and physical retention to protect personnel in automated manufacturing environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Degree of protection (NEMA) (EF011959): 4X
  • Degree of protection (IP) (EF005474): IP67
  • Type of electric connection (EF003961): Cable entry metrical
  • Housing material (EF001596): Plastic
  • With auxiliary release (EF011964): Yes
  • With status indication (EF001602): Yes
  • Suitable for safety functions (EF001597): Yes
  • With escape release (EF007172): Yes
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 0
  • Guard locking force (EF007552): 1300 N
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.22 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Number of contacts as normally closed contact (EF008255): 6
  • Rated operation current Ie at AC-15, 125 V (EF007082): 1.5 A

More info

▲
Door switch typeKey-operatedGuard-lockMaterial housingPlasticMaterial headResinAmbient temperature (operating)-10-55 °CHolding force1300 NDirection of operationAdjustableDoor contacts NC3Door contacts NO0Lock monitor contacts NC3Lock monitor contacts NO0Lock/Release key typeStandard keyLock/Release key positionFront + BackLock/Release key materialMetalSolenoid voltage24 VLED indicatorConnection methodTerminal blockCable length0 mDegree of protection (IP)IP67Conduit sizeM20Number of conduits1ShapeCuboidOverall length of sensor179.9 mmHeight of sensor39 mmWidth of sensor39 mmSwitch without actuatorLock/Release logicPower to unlock (Mechanical lock)
