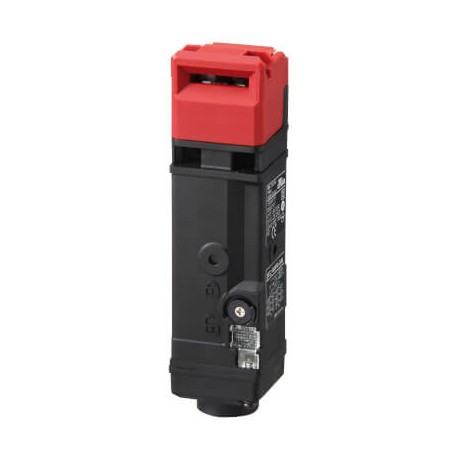

OMRON D4SL-N4RDA-DN D4SL-N4RDA-DN D4SL2378M D4SLN4RDADN OMRON Mechanical locking 3nc contact forms + 3nc contact forms IP67 M20 .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4SL-N4RDA-DN D4SL2378M D4SLN4RDADN OMRON Mechanical locking 3nc contact forms + 3nc contact forms IP67 M20 ..

D4SL-N4RDA-DN

D4SL2378M

D4SLN4RDADN

OMRON

1 Pcs.

Mechanical locking 3nc contact forms + 3nc contact forms IP67 M20 Brass Connector Guard lock safety door switch, M20 coduit, 3NC+3NC, metal head, solenoid release, connector

Automation > Position switch with guard locking
D4DL/DS/DH/DR/GL/NL/NH/NS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron mechanical locking safety switch D4SL-N4RDA-DN is engineered to secure access panels and entry gates on automated industrial machinery. By integrating reliable locking mechanisms with auxiliary monitoring contacts, this device helps maintain safe working conditions by preventing access to hazards while equipment remains operational.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Type of switching contact (EF003591): Slow-action switch
  • Degree of protection (NEMA) (EF011959): 4X
  • Degree of protection (IP) (EF005474): IP67
  • Type of electric connection (EF003961): Cable entry metrical
  • Type of guard locking (EF012608): Operating current principle
  • With auxiliary release (EF011964): Yes
  • With status indication (EF001602): Yes
  • Suitable for safety functions (EF001597): Yes
  • With escape release (EF007172): Yes
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 0
  • Guard locking force (EF007552): 1300 N
  • Rated operation current Ie at AC-15, 230 V (EF001385): 0 A
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.22 A
  • Number of safety auxiliary contacts (EF006940): 0

More info

▲
Door switch typeKey-operatedGuard-lockMaterial housingPlasticMaterial headMetalAmbient temperature (operating)-10-55 °CHolding force1300 NDirection of operationAdjustableDoor contacts NC3Door contacts NO0Lock monitor contacts NC3Lock monitor contacts NO0Lock/Release key typeStandard keyLock/Release key positionFront + BackLock/Release key materialMetalSolenoid voltage24 VLED indicatorConnection methodSystem connectorCable length0 mDegree of protection (IP)IP67Conduit sizeM20Number of conduits1ShapeCuboidOverall length of sensor155 mmHeight of sensor39 mmWidth of sensor39 mmSwitch without actuatorLock/Release logicPower to unlock (Mechanical lock)
