View larger
Images are for illustrative purposes only. Please refer to data sheet for details

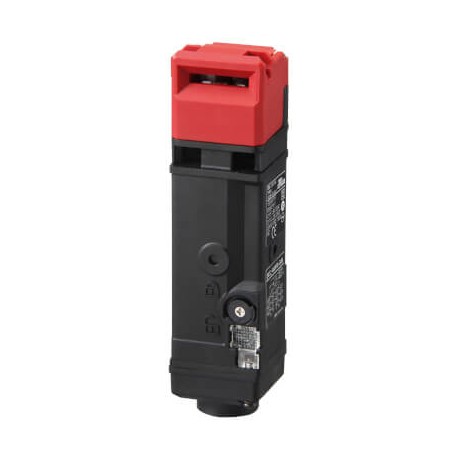

D4SL-N4RDA-D D4SL2377A D4SLN4RDAD OMRON Mechanical locking 3nc contact forms + 3nc contact forms IP67 M20 Br..
D4SL-N4RDA-D
D4SL2377A
D4SLN4RDAD
OMRON
1 Pcs.
Mechanical locking 3nc contact forms + 3nc contact forms IP67 M20 Brass Terminals
Guard lock safety door switch, M20 coduit, 3NC+3NC, metal head, solenoid release, terminal block
Automation > Position switch with guard locking
D4DL/DS/DH/DR/GL/NL/NH/NS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Door switch typeKey-operatedGuard-lockMaterial housingPlasticMaterial headMetalAmbient temperature (operating)-10-55 °CHolding force1300 NDirection of operationAdjustableDoor contacts NC3Door contacts NO0Lock monitor contacts NC3Lock monitor contacts NO0Lock/Release key typeStandard keyLock/Release key positionFront + BackLock/Release key materialMetalSolenoid voltage24 VLED indicatorConnection methodTerminal blockCable length0 mDegree of protection (IP)IP67Conduit sizeM20Number of conduits1ShapeCuboidOverall length of sensor179.9 mmHeight of sensor39 mmWidth of sensor39 mmSwitch without actuatorLock/Release logicPower to unlock (Mechanical lock)
| Feature Name | Feature Value |
|---|---|
| Explosion safety category for dust (EF003998) | None |
| Construction type housing (EF004008) | Cuboid |
| Type of switching contact (EF003591) | Slow-action switch |
| Degree of protection (NEMA) (EF011959) | 4X |
| Coating housing (EF001601) | Other |
| Degree of protection (IP) (EF005474) | IP67 |
| Type of interface for safety communication (EF003956) | None |
| Type of electric connection (EF003961) | Cable entry metrical |
| Type of interface (EF006977) | None |
| Housing material (EF001596) | Other |
| Type of guard locking (EF012608) | Quiescent current principle |
| Explosion safety category for gas (EF003997) | None |
| With auxiliary release (EF011964) | Yes |
| With status indication (EF001602) | Yes |
| Suitable for safety functions (EF001597) | Yes |
| With escape release (EF007172) | Yes |
| Number of contacts as change-over contact (EF008257) | 0 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Guard locking force (EF007552) | 1300 N |
| Rated operation current Ie at AC-15, 230 V (EF001385) | 0 A |
| Rated operation current Ie at DC-13, 125 V (EF007085) | 0.22 A |
| Number of safety auxiliary contacts (EF006940) | 0 |
| Rated operation current Ie at DC-13, 24 V (EF007087) | 0 A |
| Rated operation current Ie at DC-13, 230 V (EF001386) | 0 A |
| Number of contacts as normally closed contact (EF008255) | 6 |
| Rated operation current Ie at AC-15, 125 V (EF007082) | 1.5 A |
| Width sensor (EF007094) | 39 mm |
| Rated operation current Ie at AC-15, 24 V (EF007084) | 0 A |
| Height of sensor (EF007283) | 39 mm |
| Length of sensor (EF007334) | 179.9 mm |
| Ambient temperature during operating (EF007515) | -10 °C |
| Rated control supply voltage magnet drive DC (EF007070) | 20.4 V |
