View larger
Images are for illustrative purposes only. Please refer to data sheet for details

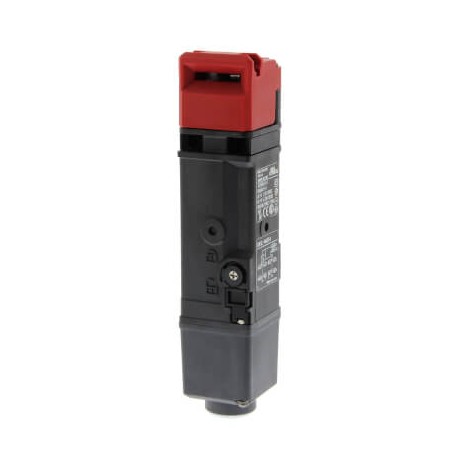

D4SL-N4QDG-D D4SL2373R D4SLN4QDGD OMRON Lock solenoid 3nc contact forms + 2NC/1NO IP67 M20 LED Metal Termina..
D4SL-N4QDG-D
D4SL2373R
D4SLN4QDGD
OMRON
1 Pcs.
Lock solenoid 3nc contact forms + 2NC/1NO IP67 M20 LED Metal Terminals
Door locking switch, M20, 3NC + 2NC/1NO head: metal, 24VDC solenoid lock/mechanical release, LED indicator
Automation > Position switch with guard locking
D4DL/DS/DH/DR/GL/NL/NH/NS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Door switch typeKey-operatedGuard-lockMaterial housingPlasticMaterial headMetalAmbient temperature (operating)-10-55 °CHolding force1300 NDirection of operationAdjustableDoor contacts NC3Door contacts NO0Lock monitor contacts NC2Lock monitor contacts NO1Lock/Release key typeStandard keyLock/Release key positionFront + BackLock/Release key materialMetalSolenoid voltage24 VLED indicatorConnection methodTerminal blockCable length0 mDegree of protection (IP)IP67Conduit sizeM20Number of conduits1ShapeCuboidOverall length of sensor179.9 mmHeight of sensor39 mmWidth of sensor39 mmLock/Release logicPower to lock (Solenoid lock)
