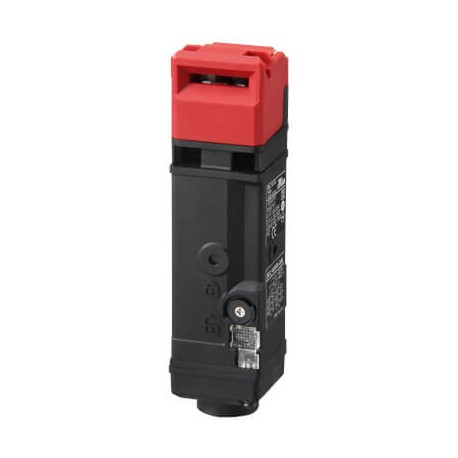

OMRON D4SL-N4NDG-DN D4SL-N4NDG-DN D4SL2358E D4SLN4NDGDN OMRON Lock solenoid 2NC/1NO + 2NC/1NO IP67 M20 LED Metal Connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4SL-N4NDG-DN D4SL2358E D4SLN4NDGDN OMRON Lock solenoid 2NC/1NO + 2NC/1NO IP67 M20 LED Metal Connector

D4SL-N4NDG-DN

D4SL2358E

D4SLN4NDGDN

OMRON

1 Pcs.

Lock solenoid 2NC/1NO + 2NC/1NO IP67 M20 LED Metal Connector Guard lock safety door switch, M20 coduit, 2NC/1NO+2NC/1NO, metal head, solenoid lock, connector

Automation > Position switch with guard locking
D4DL/DS/DH/DR/GL/NL/NH/NS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron D4SL-N4NDG-DN lock solenoid is deployed in industrial environments to securely lock safety doors and prevent hazardous machinery movement until operations completely halt. Solenoid interlocks protect personnel by ensuring machine enclosures remain locked during active processing sequences.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing: Cuboid
  • Degree of protection (NEMA): 4X
  • Degree of protection (IP): IP67
  • Type of electric connection: Cable entry metrical
  • Housing material: Plastic
  • Type of guard locking: Operating current principle
  • With auxiliary release: Yes
  • With status indication: Yes
  • Suitable for safety functions: Yes
  • With escape release: Yes
  • Number of contacts as change-over contact: 0
  • Number of contacts as normally open contact: 2
  • Guard locking force: 1300 N
  • Rated operation current Ie at DC-13, 125 V: 0.22 A
  • Number of safety auxiliary contacts: 0
  • Number of contacts as normally closed contact: 4

More info

▲
Door switch typeKey-operatedGuard-lockMaterial housingPlasticMaterial headMetalAmbient temperature (operating)-10-55 °CHolding force1300 NDirection of operationAdjustableDoor contacts NC2Door contacts NO1Lock monitor contacts NC2Lock monitor contacts NO1Lock/Release key typeStandard keyLock/Release key positionFront + BackLock/Release key materialMetalSolenoid voltage24 VLED indicatorConnection methodSystem connectorCable length0 mDegree of protection (IP)IP67Conduit sizeM20Number of conduits1ShapeCuboidOverall length of sensor155 mmHeight of sensor39 mmWidth of sensor39 mmSwitch without actuatorLock/Release logicPower to lock (Solenoid lock)
