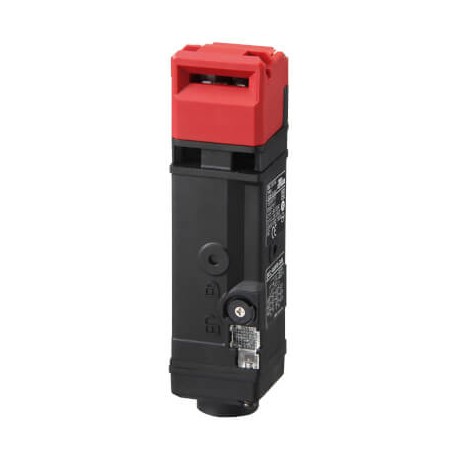

OMRON D4SL-N4NDA-D D4SL-N4NDA-D D4SL2353D D4SLN4NDAD OMRON Mechanical lock 2NC/1NO + 2NC/1NO IP67 M20 LED Metal Terminals View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4SL-N4NDA-D D4SL2353D D4SLN4NDAD OMRON Mechanical lock 2NC/1NO + 2NC/1NO IP67 M20 LED Metal Terminals

D4SL-N4NDA-D

D4SL2353D

D4SLN4NDAD

OMRON

1 Pcs.

Mechanical lock 2NC/1NO + 2NC/1NO IP67 M20 LED Metal Terminals Guard lock safety door switch, M20 coduit, 2NC/1NO+2NC/1NO, metal head, solenoid release, terminal block

Automation > Position switch with guard locking
D4DL/DS/DH/DR/GL/NL/NH/NS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron D4SL-N4NDA-D mechanical lock safety switch secures industrial safety guards to prevent operator entry into hazardous automation zones during machinery cycles. These interlock switches form an essential part of machine safety architectures.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Type of switching contact (EF003591): Slow-action switch
  • Degree of protection (NEMA) (EF011959): 4X
  • Degree of protection (IP) (EF005474): IP67
  • Type of electric connection (EF003961): Cable entry metrical
  • Type of guard locking (EF012608): Quiescent current principle
  • With auxiliary release (EF011964): Yes
  • With status indication (EF001602): Yes
  • Suitable for safety functions (EF001597): Yes
  • With escape release (EF007172): Yes
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 2
  • Guard locking force (EF007552): 1300 N
  • Rated operation current Ie at AC-15, 230 V (EF001385): 0 A
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.22 A
  • Number of safety auxiliary contacts (EF006940): 0

More info

▲
Door switch typeKey-operatedGuard-lockMaterial housingPlasticMaterial headMetalAmbient temperature (operating)-10-55 °CHolding force1300 NDirection of operationAdjustableDoor contacts NC2Door contacts NO1Lock monitor contacts NC2Lock monitor contacts NO1Lock/Release key typeStandard keyLock/Release key positionFront + BackLock/Release key materialMetalSolenoid voltage24 VLED indicatorConnection methodTerminal blockCable length0 mDegree of protection (IP)IP67Conduit sizeM20Number of conduits1Switch actionSlow actionShapeCuboidOverall length of sensor179.9 mmHeight of sensor179.9 mmWidth of sensor39 mmSwitch without actuatorLock/Release logicPower to unlock (Mechanical lock)
