OMRON D4SL-N4HFG-D D4SL-N4HFG-D D4SL2189B D4SLN4HFGD OMRON Lock solenoid 3nc contact forms + 2NC IP67 M20 LED Plastic Terminals View larger
Images are for illustrative purposes only. Please refer to data sheet for details

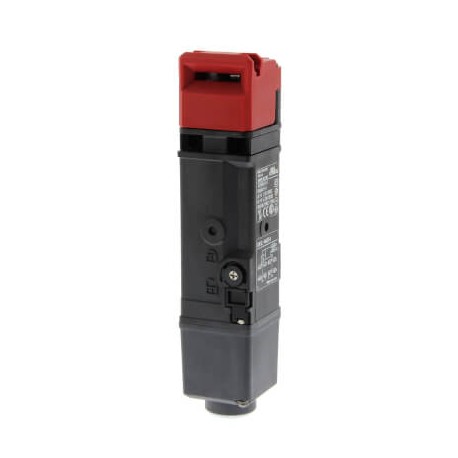

D4SL-N4HFG-D D4SL2189B D4SLN4HFGD OMRON Lock solenoid 3nc contact forms + 2NC IP67 M20 LED Plastic Terminals

D4SL-N4HFG-D

D4SL2189B

D4SLN4HFGD

OMRON

1 Pcs.

Lock solenoid 3nc contact forms + 2NC IP67 M20 LED Plastic Terminals Guard lock safety-door switch, D4SL-N, M20, 3NC + 2NC, head: resin, 24VDC solenoid lock/mechanical release, LED indicator

Automation > Position switch with guard locking
D4DL/DS/DH/DR/GL/NL/NH/NS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A plastic Lock solenoid 3nc contact forms + 2NC IP67 M20 LED Plastic Terminals from Omron serves as a protective interlocking mechanism for industrial safety guards. Units of this type restrict operator entry to automated work cells until dangerous motion has completely stopped. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Degree of protection (NEMA) (EF011959): 4X
  • Degree of protection (IP) (EF005474): IP67
  • Type of electric connection (EF003961): Cable entry metrical
  • Housing material (EF001596): Plastic
  • With auxiliary release (EF011964): Yes
  • With status indication (EF001602): Yes
  • Suitable for safety functions (EF001597): Yes
  • With escape release (EF007172): Yes
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 0
  • Guard locking force (EF007552): 1300 N
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.22 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Number of contacts as normally closed contact (EF008255): 5
  • Rated operation current Ie at AC-15, 125 V (EF007082): 1.5 A

More info

▲
Door switch typeKey-operatedGuard-lockMaterial housingPlasticMaterial headResinAmbient temperature (operating)-10-55 °CHolding force1300 NDirection of operationAdjustableDoor contacts NC3Door contacts NO0Lock monitor contacts NC2Lock monitor contacts NO0Lock/Release key typeStandard keyLock/Release key positionFront + BackLock/Release key materialMetalSolenoid voltage24 VLED indicatorConnection methodTerminal blockCable length0 mDegree of protection (IP)IP67Conduit sizeM20Number of conduits1ShapeCuboidOverall length of sensor179.9 mmHeight of sensor39 mmWidth of sensor39 mmSwitch without actuatorLock/Release logicPower to lock (Solenoid lock)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
