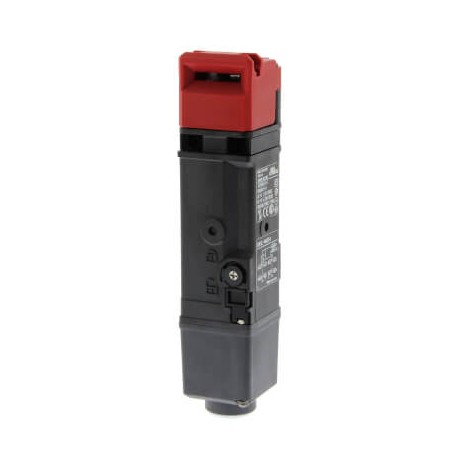

OMRON D4SL-N4HFA-D D4SL-N4HFA-D D4SL2185M D4SLN4HFAD OMRON Mechanical locking 3nc contact forms + 2NC IP67 M20 LED Plastic Term.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4SL-N4HFA-D D4SL2185M D4SLN4HFAD OMRON Mechanical locking 3nc contact forms + 2NC IP67 M20 LED Plastic Term..

D4SL-N4HFA-D

D4SL2185M

D4SLN4HFAD

OMRON

1 Pcs.

Mechanical locking 3nc contact forms + 2NC IP67 M20 LED Plastic Terminals Guard lock safety-door switch, D4SL-N, M20, 3NC + 2NC, head: resin, Mechanical lock/24VDC solenoid release, LED indicator

Automation > Position switch with guard locking
D4DL/DS/DH/DR/GL/NL/NH/NS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for heavy-duty industrial environments, this Omron D4SL-N4HFA-D mechanical locking switch provides reliable position monitoring and physical guard locking for safety-critical machine doors. It prevents unintended access to automated machinery by maintaining a secure lock until hazardous operations are fully stopped.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Degree of protection (NEMA) (EF011959): 4X
  • Degree of protection (IP) (EF005474): IP67
  • Type of electric connection (EF003961): Cable entry metrical
  • Housing material (EF001596): Plastic
  • With auxiliary release (EF011964): Yes
  • With status indication (EF001602): Yes
  • Suitable for safety functions (EF001597): Yes
  • With escape release (EF007172): Yes
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 0
  • Guard locking force (EF007552): 1300 N
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.22 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Number of contacts as normally closed contact (EF008255): 5
  • Rated operation current Ie at AC-15, 125 V (EF007082): 1.5 A

More info

▲
Door switch typeKey-operatedGuard-lockMaterial housingPlasticMaterial headResinAmbient temperature (operating)-10-55 °CHolding force1300 NDirection of operationAdjustableDoor contacts NC3Door contacts NO0Lock monitor contacts NC2Lock monitor contacts NO0Lock/Release key typeStandard keyLock/Release key positionFront + BackLock/Release key materialMetalSolenoid voltage24 VLED indicatorConnection methodTerminal blockCable length0 mDegree of protection (IP)IP67Conduit sizeM20Number of conduits1ShapeCuboidOverall length of sensor179.9 mmHeight of sensor39 mmWidth of sensor39 mmSwitch without actuatorLock/Release logicPower to unlock (Mechanical lock)
