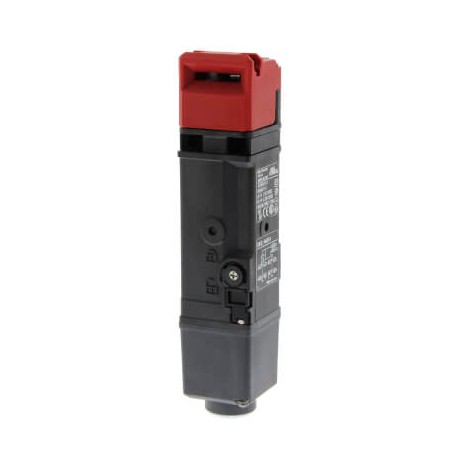

D4SL-N4GFG-D D4SL2181G D4SLN4GFGD OMRON Lock solenoid 3nc contact forms + 1NC/1NO IP67 M20 LED Plastic Termi..
D4SL-N4GFG-D
D4SL2181G
D4SLN4GFGD
OMRON
1 Pcs.
Automation > Position switch with guard locking
D4DL/DS/DH/DR/GL/NL/NH/NS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A solenoid-actuated safety interlock switch configured to maintain closed barriers during machine operation and prevent operator access to active automation hazards. These safety components are standard across industrial processing equipment and assembly lines. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Construction type housing (EF004008): Cuboid
- Degree of protection (NEMA) (EF011959): 4X
- Degree of protection (IP) (EF005474): IP67
- Type of electric connection (EF003961): Cable entry metrical
- Housing material (EF001596): Plastic
- With auxiliary release (EF011964): Yes
- With status indication (EF001602): Yes
- Suitable for safety functions (EF001597): Yes
- With escape release (EF007172): Yes
- Number of contacts as change-over contact (EF008257): 0
- Number of contacts as normally open contact (EF008256): 1
- Guard locking force (EF007552): 1300 N
- Rated operation current Ie at DC-13, 125 V (EF007085): 0.22 A
- Number of safety auxiliary contacts (EF006940): 0
- Number of contacts as normally closed contact (EF008255): 4
- Rated operation current Ie at AC-15, 125 V (EF007082): 1.5 A
