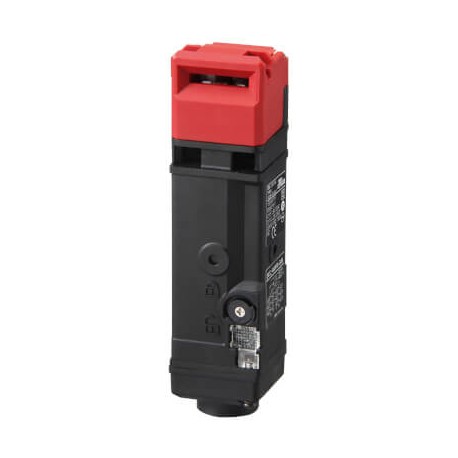

OMRON D4SL-N4GFA-DN D4SL-N4GFA-DN D4SL2178G D4SLN4GFADN OMRON Mechanical locking 3nc contact forms + 1NC/1NO IP67 M20 LED Plasti.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4SL-N4GFA-DN D4SL2178G D4SLN4GFADN OMRON Mechanical locking 3nc contact forms + 1NC/1NO IP67 M20 LED Plasti..

D4SL-N4GFA-DN

D4SL2178G

D4SLN4GFADN

OMRON

1 Pcs.

Mechanical locking 3nc contact forms + 1NC/1NO IP67 M20 LED Plastic Connector Door locking switch, M20, 3NC + 1NC/1NO, head: resin, Mechanical lock/24VDC solenoid release, LED indicator, connector

Automation > Position switch with guard locking
D4DL/DS/DH/DR/GL/NL/NH/NS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Mechanical locking safety switches like this Omron D4SL-N4GFA-DN unit are utilized across automated facilities to guard access points and halt industrial processes when protective barriers are breached. Integration into a machine safety circuit ensures that equipment cannot be re-energized until the guard is securely closed and locked. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Degree of protection (NEMA) (EF011959): 4X
  • Degree of protection (IP) (EF005474): IP67
  • Type of electric connection (EF003961): Cable entry metrical
  • Housing material (EF001596): Plastic
  • Type of guard locking (EF012608): Quiescent current principle
  • With auxiliary release (EF011964): Yes
  • With status indication (EF001602): Yes
  • Suitable for safety functions (EF001597): Yes
  • With escape release (EF007172): Yes
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Guard locking force (EF007552): 1300 N
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.22 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Number of contacts as normally closed contact (EF008255): 4

More info

▲
Door switch typeKey-operatedGuard-lockMaterial housingPlasticMaterial headResinAmbient temperature (operating)-10-55 °CHolding force1300 NDirection of operationAdjustableDoor contacts NC3Door contacts NO0Lock monitor contacts NC1Lock monitor contacts NO1Lock/Release key typeStandard keyLock/Release key positionFront + BackLock/Release key materialMetalSolenoid voltage24 VLED indicatorConnection methodSystem connectorCable length0 mDegree of protection (IP)IP67Conduit sizeM20Number of conduits1ShapeCuboidOverall length of sensor155 mmHeight of sensor39 mmWidth of sensor39 mmSwitch without actuatorLock/Release logicPower to unlock (Mechanical lock)
